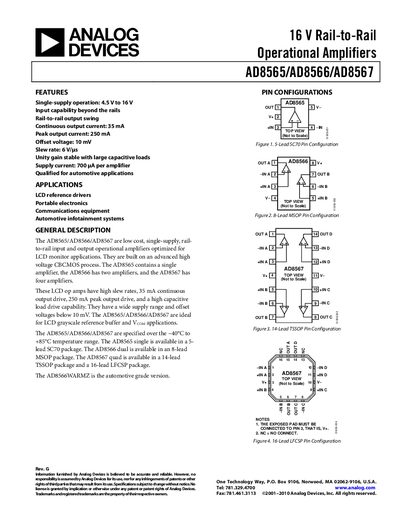

AD8565/AD8566/AD8567 are low cost, single-supply, rail- to-rail input and output operational amplifiers optimized for LCD monitor applications. They are built on an advanced high voltage CBCMOS process. The AD8565 contains a single amplifier, the AD8566 has two amplifiers, and the AD8567 has four amplifiers.
The AD8565/AD8566/AD8567 family are rail‑to‑rail input and output operational amplifiers optimized for LCD monitor applications. They operate from a single supply of 4.5 V to 16 V, are qualified for automotive use, and are offered in four package options: 5‑lead SC70 (AD8565), 8‑lead MSOP (AD8566), 14‑lead TSSOP and 16‑lead LFCSP (AD8567).
Key electrical characteristics include a continuous output current of 35 mA, peak output current of 250 mA, offset voltage as low as 10 mV, slew rate of 6 V/µs, gain‑bandwidth product of 5 MHz, and a supply‑range PSRR of 70‑90 dB. The devices operate over –40 °C to +85 °C and meet absolute maximum ratings such as 18 V supply voltage.
| Supply Voltage Range | 4.5 V to 16 V |
|---|---|
| Continuous Output Current | 35 mA |
| Peak Output Current | 250 mA |
| Offset Voltage | 10 mV |
| Input Bias Current | 600 nA |
| Operating Temperature Range | -40 °C to +85 °C |
The devices operate from 4.5 V up to 16 V supply voltage.
Each amplifier can source up to 35 mA continuously.
Yes, the family is qualified for automotive use.
