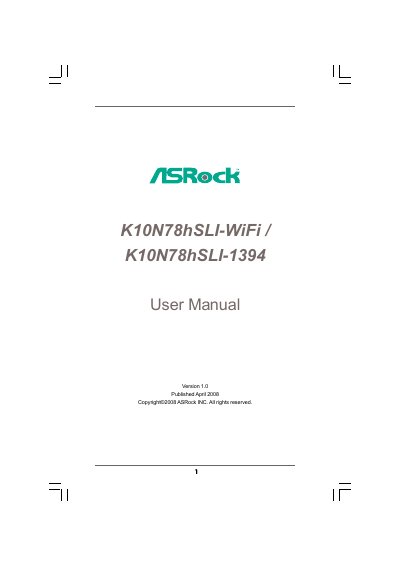

ASRock K10N78hSLI-WiFi / K10N78hSLI-1394 User Manual
This manual covers everything needed to install and configure the ASRock K10N78hSLI-WiFi and K10N78hSLI-1394 motherboards, including hardware installation, BIOS configuration, and driver installation. It also contains detailed specifications, safety cautions, and troubleshooting tips.
The document includes sections on motherboard layout, expansion slot usage, Wi‑Fi module operation, SATA/eSATAII setup, overclocking technology, and software support via the included support CD. It is intended for system integrators and end users who need to set up the board for Windows XP, Vista, or later operating systems.
| Form Factor | ATX (12.0‑in x 8.4‑in) |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Supported CPUs | AMD Phenom, Athlon 64 FX/X2, Sempron |
| Chipset | NVIDIA GeForce 8200 |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s (Realtek RTL8211B) |
| Wireless (Wi‑Fi model only) | 802.11g 54 Mbps, 802.11b 11 Mbps, AP and Station modes |
| SATA Connectors | 6 × SATAII 3.0 Gb/s (RAID 0/1/0+1/JBOD/5) with Hot‑Plug |
It supports IEEE 802.11g at 54 Mbps and IEEE 802.11b at 11 Mbps, with both AP and Station modes.
It uses the ATX form factor, measuring 12.0 in × 8.4 in (30.5 cm × 21.3 cm).
