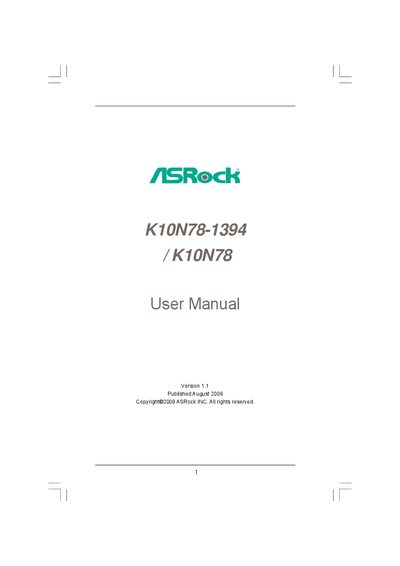

ASRock K10N78-1394 Motherboard User Manual

This document is the user manual for ASRock K10N78-1394 / K10N78 motherboard, describing the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 1.7 MB
Published: 02 May, 2012
Updated: 29 September, 2023
Models: K10N78-1394, K10N78
MD5 checksum: 395298BBFCEA345E72AC1CD1065BADCC
PDF: ASRock K10N78-1394 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock K10N78-1394 (and K10N78) ATX motherboard, including package contents, layout diagrams, and detailed hardware installation steps. It also explains BIOS features, overclocking options, and software support.

Additional sections describe supported CPUs, memory types, expansion slots, I/O ports, and operating system compatibility, along with troubleshooting tips and warranty information.

What's inside

Package Contents
Specifications
Motherboard Layout (K10N78-1394)
I/O Panel (K10N78-1394)
CPU Installation
Memory Installation
BIOS Setup Utility
Software Support
Support CD Information

Specifications

Form Factor	ATX (12.0‑in x 8.4‑in)
CPU Socket	Socket AM2+ / AM2
Maximum Memory	8 GB DDR2
Chipset	NVIDIA GeForce 8200
SATA II Connectors	6 x 3.0 Gb/s SATAII ports (RAID supported)
USB Ports	6 rear USB 2.0 ports + 2 via headers
LAN	Gigabit Ethernet (Realtek RTL8211BCL‑GR)

Frequently asked questions

Which Windows operating systems are supported by the K10N78‑1394 motherboard?

It supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.

How many SATA ports does the motherboard provide and does it support RAID?

The board has six SATAII 3.0 Gb/s connectors that support RAID 0, 1, 0+1, 5 and JBOD.

What is the maximum amount of DDR2 memory the board can handle?

The maximum system memory capacity is 8 GB.

How many USB ports are available on the rear panel?

There are six USB 2.0 ports on the rear I/O panel.
