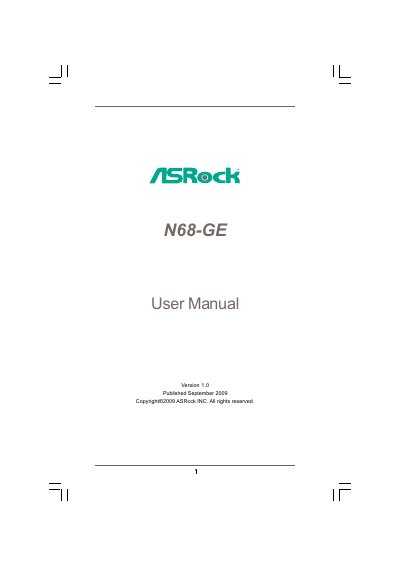

ASRock N68-GE Motherboard User Manual

N68-GE User Manual, introduces the function and usage of the product

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 696 KB
Published: 02 May, 2012
Updated: 01 October, 2023
Model: N68-GE
MD5 checksum: A73F09367357D740B28B5DA3A30C48A9
PDF: ASRock N68-GE Motherboard User Manual PDF

About this manual

This manual covers everything needed to set up the ASRock N68-GE motherboard, including package contents, hardware installation (CPU, memory, expansion slots, SATA, and I/O panel), and software support. Detailed instructions guide users through BIOS setup, over‑clocking features, and driver installation.

Additional sections describe the motherboard’s technical specifications, safety warnings, and troubleshooting tips, as well as how to use the support CD and contact ASRock for further assistance.

What's inside

Introduction
Specifications
Motherboard Layout & I/O Panel
Hardware Installation
BIOS Setup Utility
Software Support & Drivers
Safety & Warranty

Specifications

Form Factor	Micro ATX (9.6" x 8.2")
CPU Socket	Socket AM2+ / AM2 (AMD Phenom, Athlon, Sempron, etc.)
Chipset	NVIDIA GeForce 7025 / nForce 630a
LAN	Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8211CL
SATA Connectors	4 × Serial ATAII 3.0 Gb/s, RAID 0/1/0+1/5/JBOD, NCQ, Hot‑Plug

Frequently asked questions

What CPU sockets does the N68‑GE motherboard support?

It supports Socket AM2+ and Socket AM2 for AMD Phenom, Athlon, Sempron and related processors.

How many USB ports are available on the rear I/O panel?

The rear panel provides four USB 2.0 ports.

Does the motherboard support RAID configurations?

Yes, the SATAII connectors support RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.

What is the maximum memory capacity?

The board can accommodate up to 16 GB of DDR2 memory.
