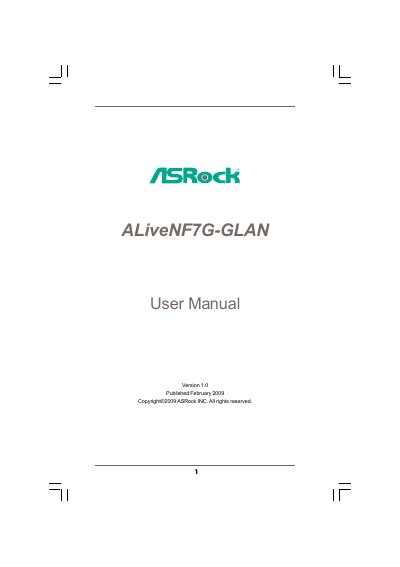

This is a user manual
This manual introduces the ASRock ALiveNF7G-GLAN Micro ATX motherboard, outlines the package contents, and details the hardware layout, I/O panel, and supported components. It also covers BIOS configuration, over‑clocking features, and software support via the included support CD.
Step‑by‑step installation instructions cover CPU, memory, expansion slots, SATA/IDE devices, and dual‑monitor setup. The BIOS Setup Utility section explains navigation, hardware health monitoring, and security settings, while the software support chapter describes driver installation and utility usage. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6‑in x 8.2‑in) |
|---|---|
| CPU Socket | Socket AM2+ / AM2 (supports AMD Phenom, Athlon, Sempron, AM3 processors) |
| Chipset | NVIDIA GeForce 7050 / nForce 630A MCP |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8211CL) |
The motherboard supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Windows Vista, and Vista 64‑bit.
