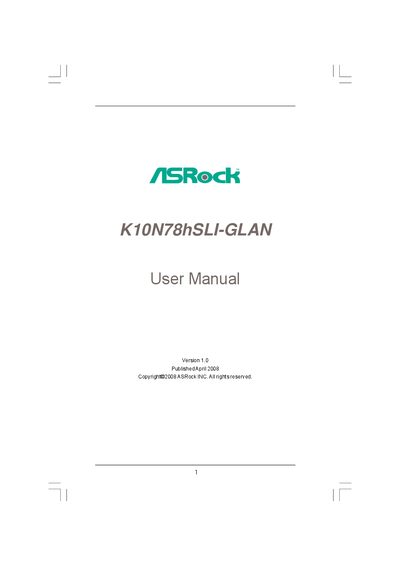

ASRock K10N78hSLI-GLAN Motherboard User Manual

This document is the user manual for the K10N78hSLI-GLAN motherboard by ASRock. It describes the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 1.3 MB
Published: 02 May, 2012
Updated: 28 September, 2023
Model: K10N78HSLI-GLAN
MD5 checksum: 5807D20D70F8F633B8840CDE1E93429E
PDF: ASRock K10N78hSLI-GLAN Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K10N78hSLI-GLAN ATX motherboard, lists the package contents, and details the hardware specifications such as CPU support, memory configuration, expansion slots, and integrated audio and LAN features.

It also guides users through CPU and memory installation, SATA/eSATA setup, BIOS configuration, and software support including driver installation and operating system compatibility.

What's inside

Introduction
Package Contents
Specifications
CPU Installation
Memory Installation
Expansion Slots
BIOS Setup Utility
Software Support
Hybrid SLI Operation Guide

Specifications

Form Factor	ATX (12.0" x 8.4")
CPU Socket	Socket AM2+ / AM2
Supported CPUs	AMD Phenom, FX, Athlon 64, Sempron
Chipset	NVIDIA GeForce 8200
Memory Slots	4 x DDR2 DIMM
Maximum Memory	8 GB
LAN	Gigabit 10/100/1000 Mb/s (Realtek RTL8211B)
Audio Codec	ALC662
SATA Connectors	6 x SATAII 3.0 Gb/s (RAID support)
BIOS	4 MB AMI BIOS

Frequently asked questions

Which Windows operating systems are supported by this motherboard?

It supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.

What is the maximum system memory this motherboard can handle?

The maximum supported memory capacity is 8 GB.

What audio codec is used on the K10N78hSLI-GLAN motherboard?

It uses the Realtek ALC662 audio codec.
