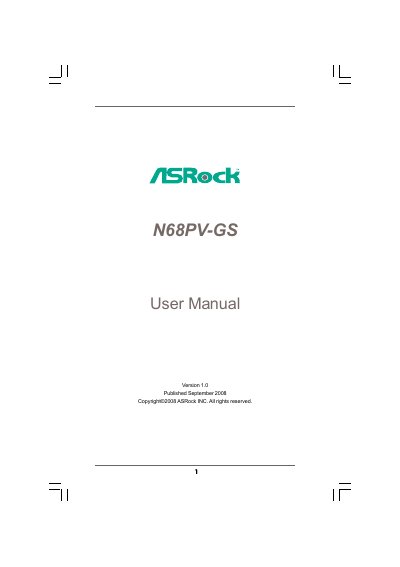

N68PV-GS User Manual introduces the features and usage of the motherboard
This manual introduces the ASRock N68PV-GS motherboard, a Micro ATX board supporting AMD AM2+ / AM2 processors and dual‑channel DDR2 memory. It includes safety notices, warranty information, and an overview of the board’s layout and connectors.
The guide covers step‑by‑step hardware installation, BIOS configuration, overclocking features, driver installation, and software support. Detailed specifications for CPU, chipset, graphics, audio, networking, and I/O are provided, along with troubleshooting and warranty details.
| Form Factor | Micro ATX (9.6" x 7.2") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Chipset | NVIDIA GeForce 7050 / nForce 630A MCP |
| Maximum Memory Capacity | 4 GB |
| Expansion Slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI |
| Audio Codec | Realtek ALC662, 5.1‑channel HD Audio |
| LAN | Gigabit Ethernet (Realtek RTL8211CL) |
It supports AMD Socket AM2+ and AM2 processors.
The board can accommodate up to 4 GB of DDR2 memory.
