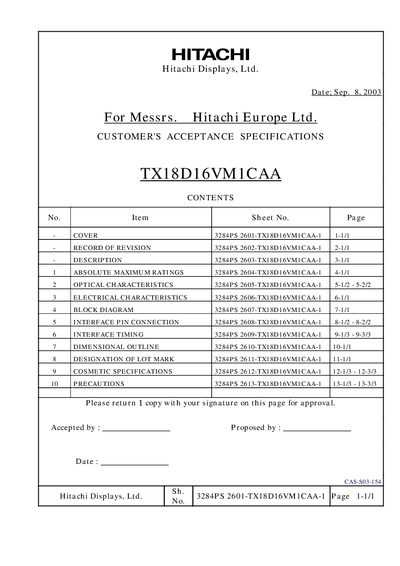

This document is about Customer's Acceptance Specifications of Hitachi Displays, Ltd. TX18D16VM1CAA.
The Hitachi TX18D16VM1CAA is a TFT liquid‑crystal display module with a back‑light unit (CCFL). It provides an effective display area of 152.4 mm × 91.44 mm, a resolution of 800 × 480 pixels and a pixel pitch of 0.1905 mm. The module uses a C‑MOS RGB 6‑bit digital interface and supports a supply voltage of 3.0 V to 3.6 V.
The document lists absolute maximum environmental and electrical ratings, optical performance (contrast ratio, response time, brightness), and detailed precautions for storage, handling of the protective film, and safety. It also includes a block diagram, pin‑out information and legal use restrictions.
| Effective Display Area | 152.4 x 91.44 mm |
|---|---|
| Resolution | 800 x 480 pixels |
| Pixel Pitch | 0.1905 x 0.1905 mm |
| Number of Colors | 262k colors |
| Interface | C‑MOS, RGB 6‑bit digital each |
| Power Supply Voltage (VDD) | 3.0 – 3.6 V |
| Lamp Current (IL) | 2.0 – 4.0 mA rms |
| Contrast Ratio | 100 – 200 |
| Response Time (Rise) | 20 – 40 ms |
| White Brightness | 300 – 350 cd/m² |
The module can operate from 0 °C to 70 °C, and can be stored from –20 °C to 70 °C.
No, the product is not authorized for life‑support devices, military applications, or any use that poses a significant risk of personal injury.
