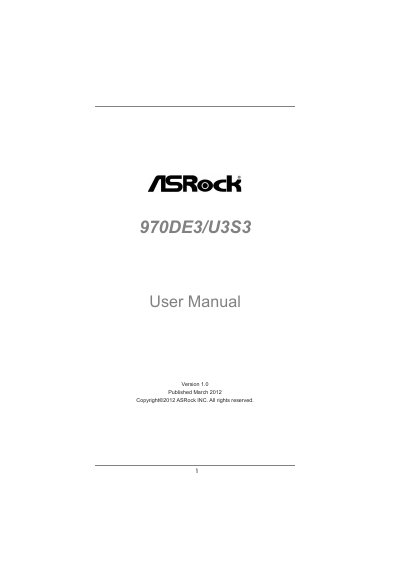

ASRock 970DE3/U3S3 Motherboard User Manual

970DE3/U3S3 User Manual. This manual introduces the features and characteristics of the 970DE3/U3S3 product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 52
File format: PDF
File size: 421 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Models: U3S3, 970DE3
MD5 checksum: EEE2AA31FCA74519600804B9F4E4075B
PDF: ASRock 970DE3/U3S3 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock 970DE3/U3S3 ATX motherboard, its package contents, and key features such as solid‑capacitor design, dual‑channel DDR3 memory, and extensive I/O options. It also outlines safety notices, warranty disclaimer, and regulatory compliance.

The document guides users through hardware installation, BIOS configuration, and software support, including driver installation from the supplied support CD. Detailed sections cover BIOS setup utility, boot options, security settings, and troubleshooting tips. This manual is written in Chinese.

What's inside

Introduction
Specifications
Motherboard Layout
I/O Panel
Installation
BIOS Setup Utility
Software Support
Security Screen
Boot Screen
Exit Screen

Specifications

Form Factor	ATX 12.0" x 7.5" (30.5 cm x 19.1 cm)
CPU Sockets	Socket AM3+ and Socket AM3
Maximum CPU Power	140 W
Memory Slots	4 x DDR3 DIMM slots
Maximum Memory Capacity	32 GB
Chipset	Northbridge AMD 770, Southbridge AMD SB710
USB 3.0 Ports	2 ports
BIOS	8 Mb AMI Legal BIOS

Frequently asked questions

What CPU sockets are supported by the 970DE3/U3S3 motherboard?

It supports both Socket AM3+ and Socket AM3 processors.

How much maximum system memory can be installed?

The motherboard can accommodate up to 32 GB of DDR3 memory.

How many USB 3.0 ports are provided?

There are two USB 3.0 ports on the board.

What BIOS version does this motherboard use?

It uses an 8 Mb AMI Legal BIOS.

Download PDF (421 KB)
