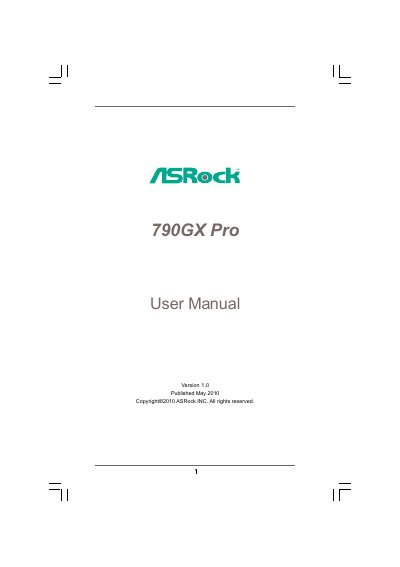

790GX Pro User Manual, introduces the product features and characteristics, usage methods, etc.
This manual introduces the ASRock 790GX Pro ATX motherboard, covering its hardware layout, installation steps, and BIOS configuration. It includes detailed sections on CPU installation, memory modules, expansion slots, I/O panel connections, and software support via the included Support CD.
The document also contains safety notices, FCC compliance information, and troubleshooting guidance, along with specifications such as supported processors, memory capacity, graphics, audio, and networking features. Users can reference the BIOS Setup Utility chapter for configuring system settings and enabling advanced features like overclocking and power saving.
| Form Factor | ATX (12.0" x 8.8") |
|---|---|
| CPU Socket | Socket AM3 |
| Maximum CPU Power | 140 W |
| Chipset | AMD 790GX (Northbridge) / AMD SB750 (Southbridge) |
| Memory Slots | 4 x DDR3 DIMM slots, up to 16 GB |
| Maximum Memory Capacity | 16 GB |
| Expansion Slots | 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 3 x PCI |
| Integrated Graphics | AMD Radeon HD 3300, up to 512 MB shared memory |
| SATA Connectors | 5 x SATAII 3.0 Gb/s (RAID supported) |
| Video Outputs | D‑Sub, DVI‑D, HDMI |
It uses the Socket AM3 for AMD Phenom II, Athlon II, and Sempron processors.
The board has four DDR3 DIMM slots and supports up to 16 GB of system memory.
There are five SATAII 3.0 Gb/s connectors that support RAID and hot‑plug.
Yes, it provides an HDMI port for video output up to 1920 × 1200.
