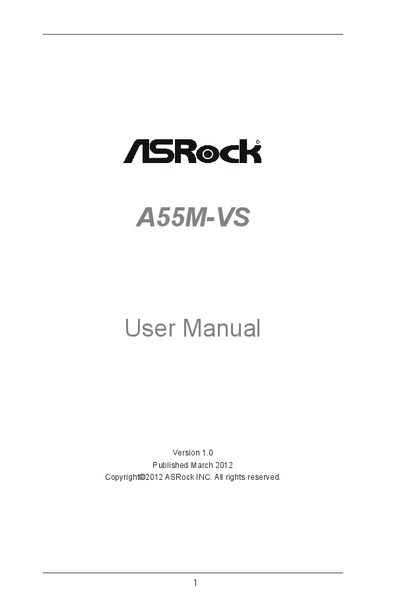

ASRock A55M-VS Motherboard User Manual

A55M-VS user manual, introduces the features and characteristics of the product

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 9.7 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: A55M-VS
MD5 checksum: 1B5AF2415CCD4D016D3D1141312268FC
PDF: ASRock A55M-VS Motherboard User Manual PDF

About this manual

This manual guides users through hardware installation, including CPU, memory, and expansion cards, and explains BIOS configuration via the UEFI Setup Utility. It also covers driver installation, operating system setup, and troubleshooting steps.

Additional sections describe the motherboard’s specifications, supported features such as dual graphics, RAID-capable SATA ports, and the included support CD utilities. Safety warnings and regulatory notices are also provided.

What's inside

Introduction
Package Contents
Specifications
Installation
UEFI Setup Utility
Operating System Installation
Support CD Information
Hardware Monitoring
Safety and Warranty

Specifications

Form Factor	Micro ATX (8.8" x 6.8")
CPU Socket	Socket FM1 (supports 100W processors)
Chipset	AMD A55 FCH (Hudson-D2)
Expansion Slots	1 × PCI‑Express 2.0 x16, 1 × PCI
Audio Codec	Realtek ALC662, 5.1 CH HD Audio
LAN	Realtek RTL8105E, 10/100 Mbps
SATA Connectors	4 × SATA2 3.0 Gb/s ports, RAID 0/1/10, AHCI, Hot‑Plug

Frequently asked questions

What CPU socket does the ASRock A55M-VS motherboard use?

It uses Socket FM1 for 100 W processors.

How many SATA ports are provided on the A55M-VS board?

The board includes four SATA2 3.0 Gb/s connectors with RAID and hot‑plug support.

What is the form factor of the A55M-VS motherboard?

It is a Micro ATX board measuring 8.8 in × 6.8 in.

Does the motherboard support dual graphics?

Yes, it supports AMD Dual Graphics.
