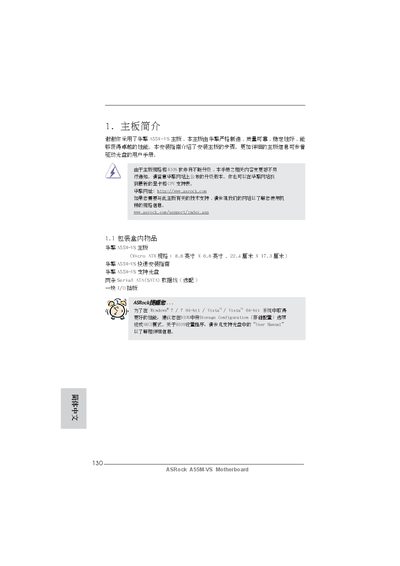

This manual provides step‑by‑step instructions for installing the ASRock A55M‑VS motherboard, including packaging contents, connector layout, and BIOS configuration. It also details the supported hardware such as CPUs, memory modules, expansion slots, and peripheral interfaces.
Additional sections cover advanced features like RAID support, audio and LAN configuration, and troubleshooting tips such as CMOS reset procedures. The document is written in Simplified Chinese and includes safety and regulatory information. This manual is written in Chinese.
| Form factor | Micro ATX (8.8" x 6.8" / 22.4 cm x 17.3 cm) |
|---|---|
| CPU socket | FM1, supports up to 100 W CPUs |
| Memory type | DDR3, dual‑channel, up to 16 GB |
| Supported memory speeds | DDR3‑2400+, 1866, 1600, 1333, 1066, 800 |
| PCI Express slots | 1 × PCIe 2.0 x16, 1 × PCI |
| LAN controller | Realtek RTL8105E, 10/100 Mb/s, supports Wake‑On‑LAN and PXE |
| SATA ports | 4 × SATA2 3.0 Gb/s, RAID 0/1/10, NCQ, AHCI |
The board uses an FM1 socket and supports CPUs with a maximum TDP of 100 W.
It supports up to 16 GB of DDR3 memory in dual‑channel mode.
A Realtek RTL8105E controller providing 10/100 Mb/s Ethernet with Wake‑On‑LAN and PXE support.
There are four SATA2 3.0 Gb/s ports that support RAID 0, RAID 1 and RAID 10.
