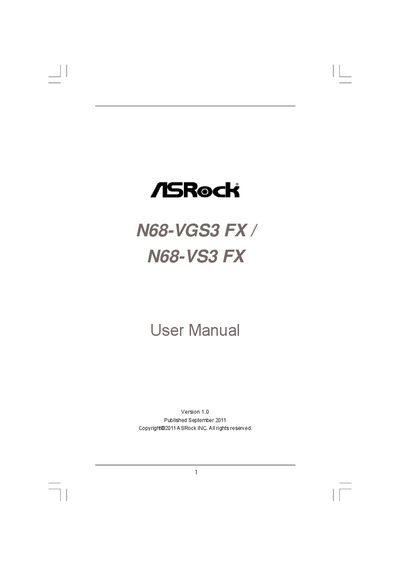

ASRock N68-VGS3 FX / N68-VS3 FX User Manual

N68-VGS3 FX/N68-VS3 FX User Manual, introduce the features and characteristics of the products.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 50
File format: PDF
File size: 991 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Models: N68-VGS3, N68-VS3
MD5 checksum: E562DD3535638F25CB805F8A0B0832E0
PDF: ASRock N68-VGS3 FX / N68-VS3 FX User Manual PDF

About this manual

This manual introduces the ASRock N68-VGS3 FX and N68-VS3 FX Micro‑ATX motherboards, describing their features, layout, and supported components. It guides users through hardware installation, BIOS configuration, and software support.

The document covers package contents, detailed specifications, step‑by‑step installation of CPU, memory, and storage, BIOS setup utility, over‑clocking features, and the utilities provided on the support CD. It also lists supported operating systems and safety warnings.

What's inside

Introduction
Specifications
Installation
BIOS Setup Utility
Software Support

Specifications

Form Factor	Micro ATX (8.5‑in x 7.0‑in)
CPU Socket	Socket AM3+ (supports AM3 processors)
Chipset	NVIDIA GeForce 7025 / nForce 630a
LAN	Realtek Giga PHY RTL8211CL, 10/100/1000 Mb/s

Frequently asked questions

What operating systems are supported by the motherboard?

The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and XP/XP 64‑bit.

How much memory can the board hold?

It can hold up to 8 GB of DDR3 memory across its two DIMM slots.

How many SATA ports are available and what features do they have?

There are four SATA2 3.0 Gb/s connectors that support RAID modes and Hot‑Plug functionality.

Does the motherboard support over‑clocking?

Yes, it includes Untied Overclocking Technology and the UCC (Unlock CPU Core) feature.
