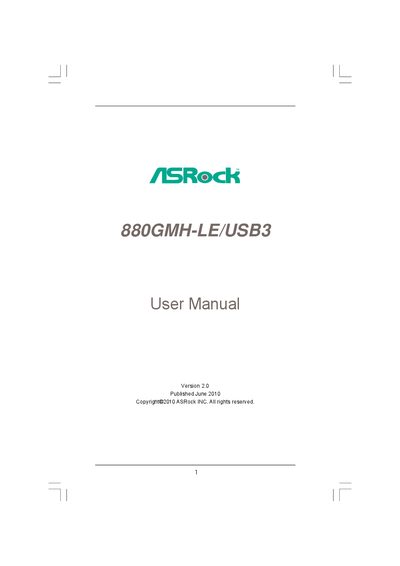

This document is the user manual for ASRock 11111 880GMH-LE/USB3, version 2.0, published in June 2010. Copyright belongs to ASRock INC. The document includes copyright notice, disclaimer, and specifications and information about the product.
This manual introduces the ASRock 880GMH-LE/USB3 motherboard and guides users through hardware installation, BIOS setup, and software support. It also includes safety notices, warranty information, and contact details.
Key sections cover package contents, CPU and memory installation, expansion slots, SATA and USB configuration, BIOS utility, and driver/utility installation from the support CD. The document ends with troubleshooting tips and regulatory compliance notes.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket AM3 |
| Chipset | Northbridge AMD 880G, Southbridge AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM |
| Maximum Memory | 8 GB |
| Integrated Graphics | AMD Radeon HD 4250 |
| Video Outputs | VGA (D‑Sub), DVI‑D, HDMI |
| Audio Codec | VIA VT1705 (5.1 CH HD Audio) |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| USB Ports | 5 × USB 2.0, 1 × USB 3.0 |
| SATA Connectors | 6 × Serial ATAII 3.0 Gb/s (RAID support) |
| BIOS | 8 Mb AMI BIOS |
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, XP Media Center and XP 64‑bit.
The board provides five USB 2.0 ports and one USB 3.0 port.
It uses an AM3 socket that supports AMD Phenom II, Athlon and Sempron processors.
Yes, the SATA connectors support RAID 0, RAID 1, RAID 10 and JBOD.
