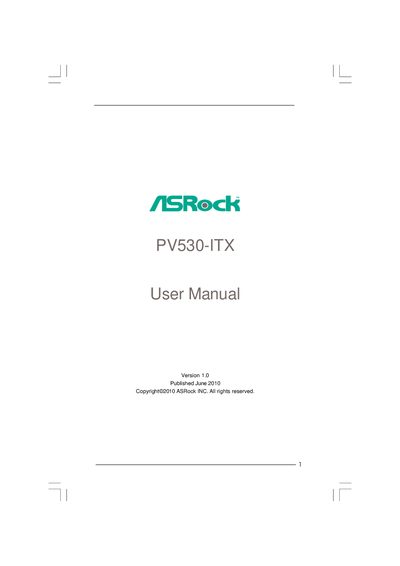

PV530-ITX User Manual
This manual introduces the ASRock PV530-ITX Mini‑ITX motherboard, covering package contents, hardware layout, and safety precautions. It guides users through installation of memory modules, expansion cards, SATA drives, and connectors, as well as BIOS configuration and overclocking features.
Additional sections describe the support CD utilities, driver installation, operating system compatibility, and troubleshooting tips. The document also includes detailed specifications, hardware monitoring options, and regulatory compliance information.
| Form Factor | Mini‑ITX (6.7‑in x 6.7‑in, 17.0 cm x 17.0 cm) |
|---|---|
| CPU | VIA PV530 Processor, 1.8 GHz |
| Chipset | VIA Vx900 |
| Memory Slots | 2 DDR3 DIMM slots, max 4 GB |
| Maximum Memory | 4 GB |
| Expansion Slot | 1 PCI slot |
| Graphics | VIA Chrome HD DX9 Graphics |
| Audio | 5.1‑channel HD Audio (VIA VT1705) |
| LAN | Realtek PCIE x1 LAN 8105E, 10/100 Mbps, Wake‑On‑LAN |
| SATA Connectors | 2 SATAII 3.0 Gb/s connectors |
| USB Ports (Rear) | 4 USB 2.0 ports |
| BIOS | 4 Mb AMI BIOS |
The rear panel provides four USB 2.0 ports.
It supports Microsoft Windows 7, Vista, and XP.
The board has two DDR3 DIMM slots with a maximum total memory of 4 GB.
A Realtek PCIE x1 LAN 8105E supporting 10/100 Mbps and Wake‑On‑LAN.
