Philips PhotoFrame 7FF3FPB is a 7-inch digital photo frame with a 16:9 screen ratio. It supports USB and SD cards and can display multiple photos and automatically rotate images.
The Philips 7FF3FPB PhotoFrame is a 7‑inch LCD digital picture frame with a 16:9 aspect ratio, designed for easy display and sharing of photos from USB drives or memory cards. It offers features such as SmartContrast, RadiantColor, auto‑orientation, and power‑saving SmartPower.

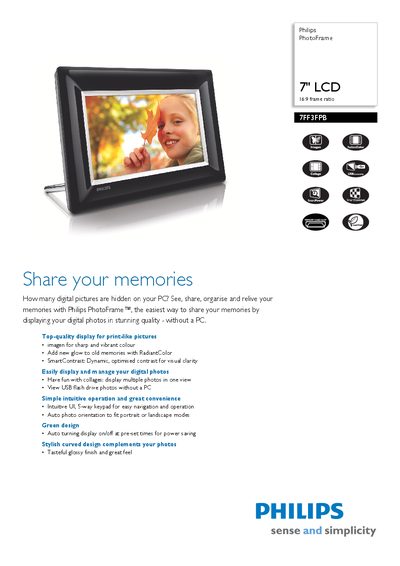

This manual explains how to connect storage media, navigate the 5‑way keypad, adjust settings like brightness and slideshow mode, and provides detailed technical specifications, dimensions, power consumption, and regulatory information.
| Aspect ratio | 16:9 |
|---|---|
| Panel resolution | 480 x 234 |
| Contrast ratio (typical) | 300:1 |
| Brightness | 200 cd/m² |
| Viewing angle | 120° horizontal, 100° vertical |
| USB connectivity | USB 2.0 Host and Slave |
| Supported memory cards | Compact Flash, SD, SDHC, MMC, xD, Memory Stick, Memory Stick Pro |
| Supported photo format | JPEG up to 10 MB, up to 20 Megapixels |
| Power consumption | 5 W |
| Dimensions (with stand) | 2064 × 139.3 × 103 mm (W × H × D) |
| Weight | 0.345 kg |
| Operating temperature range | 0 °C to 40 °C |
Insert the USB flash drive into the USB 2.0 Host port; the frame supports USB flash drives for photo viewing.
The device displays JPEG photos up to 10 MB per file and up to 20 Megapixels in resolution.
