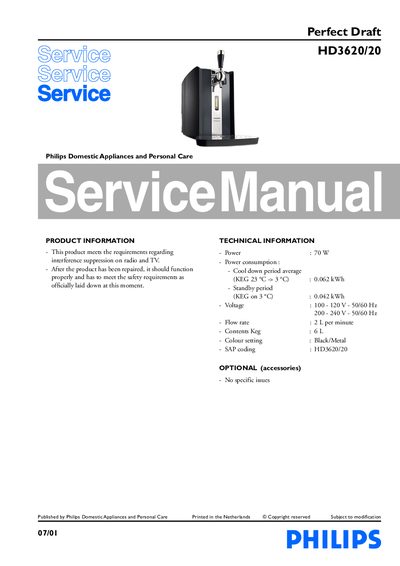

This manual provides repair information about the Perfect Draft HD3620/20
This service manual provides step‑by‑step instructions for safely disassembling, re‑assembling, and repairing the Philips Perfect Draft HD3620/20. It includes safety warnings, detailed diagrams, and part‑replacement guidelines for components such as the fan, Peltier element, pump unit, and display.
The document also describes the appliance’s service test routines, step‑mode diagnostics, and procedures for checking cooling performance, pressure sensors, and leakage detection, helping technicians troubleshoot common faults.
| Power | 70 W |
|---|---|
| Voltage | 100‑120 V 50/60 Hz, 200‑240 V 50/60 Hz |
| Flow rate | 2 L per minute |
| Keg capacity | 6 L |
| Standby power consumption | 0.042 kWh |
After the appliance reaches room temperature, measure the chiller plate temperature, block the air inlet, start the appliance, record the temperature, wait two minutes, record again; a drop of more than 6 °C indicates the Peltier is within spec.
