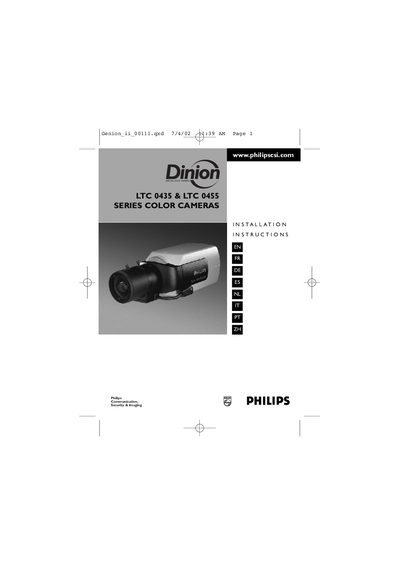

This document is the installation instructions for Philips LTC 0435 & LTC 0455 series color cameras
This manual begins with important safety instructions, warning users about dangerous voltage, proper handling, and the need for qualified service personnel. It also covers unpacking, power and video connections, and guidelines for mounting the camera and lenses.
The document includes detailed specifications for both models, menu navigation using five softkeys, and advanced set‑up options such as back‑focus adjustment, lens‑wizard functions, and night‑sense settings. It finishes with troubleshooting tips and recommended lens handling procedures.
| Active pixels (H x V) | 512 x 582 |
|---|---|
| Imager | 1/3" interline CCD |
| Resolution | 330 TV lines (standard), 480 TV lines (high) |
| Minimum illumination | <0.7 lux (standard), <0.8 lux (high), <0.3 lux with Nightsense™ |
| Signal‑to‑noise ratio | > 50 dB |
| Video output | 1 Vpp, 75 Ω |
| Power supply (LTC 04x5/10 & /20) | 12‑28 VAC or 11‑36 VDC |
| Weight | 450 g |
| Operating temperature | -20°C to +50°C |
