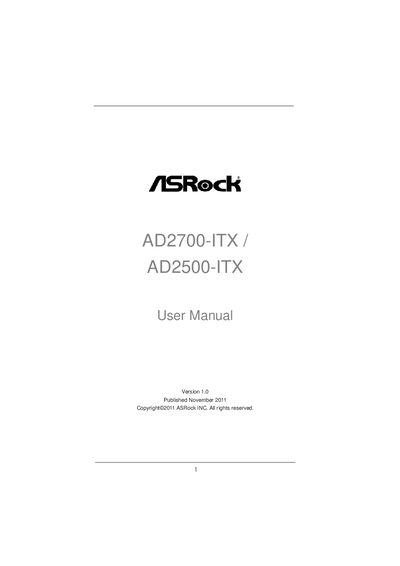

This document is the user manual for ASRock AD2700-ITX / AD2500-ITX
This manual introduces the ASRock AD2700-ITX and AD2500-ITX Mini‑ITX motherboards, lists the package contents, and details the hardware specifications such as CPU, chipset, memory, graphics, audio, LAN, USB, and expansion slots. It also explains the unique ASRock features, safety notices, and regulatory compliance.
The document guides users through hardware installation, memory module placement, SATA and USB connections, dual‑monitor setup, and jumper configuration. It includes a full UEFI/BIOS setup utility reference, driver and utility installation from the support CD, and operating‑system installation notes for Windows 7 32‑bit.
| Form Factor | Mini‑ITX (6.7" x 6.7", 17.0 cm x 17.0 cm) |
|---|---|
| CPU (AD2700-ITX) | Intel Dual‑Core Atom D2700, 2.13 GHz |
| CPU (AD2500-ITX) | Intel Dual‑Core Atom D2500, 1.86 GHz |
| Chipset | Intel NM10 Express (Southbridge) |
| Memory Slots | 2 × DDR3 SO‑DIMM, max 4 GB |
| Maximum Memory Capacity | 4 GB |
| Expansion Slot | 1 × PCI slot |
| Graphics | Intel PowerVR SGX545, HDMI/DVI/D‑Sub up to 1920×1200 |
| Audio | 7.1 CH HD Audio, Realtek ALC892 codec |
| LAN (AD2500-ITX) | Realtek RTL8105E 10/100 Ethernet |
| USB 3.0 Ports (AD2700-ITX) | 2 × USB 3.0 (ASMedia ASM1042) |
| SATA Connectors | 2 × SATA2 3.0 Gb/s (NCQ, AHCI, Hot‑Plug) |
Both models support up to 4 GB of DDR3 non‑ECC, un‑buffered memory using two SO‑DIMM slots.
The AD2700-ITX includes two USB 3.0 ports powered by an ASMedia ASM1042 controller.
The motherboard supports Microsoft Windows 7 32‑bit.
