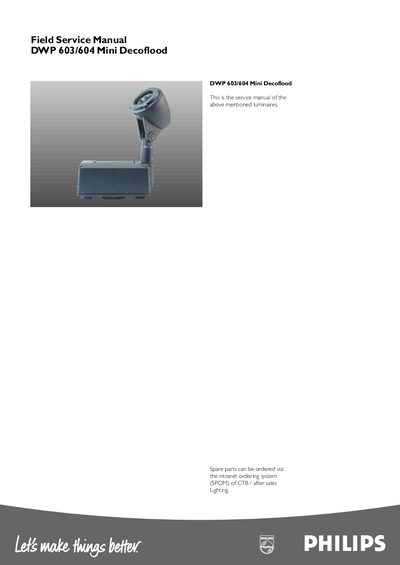

This manual introduces the maintenance information of DWP 603/604 Mini Decoflood
This Field Service Manual provides service technicians with essential information for maintaining the Philips DWP 603/604 Mini Decoflood luminaires. It includes part identification, dimensions, and ordering references.
Spare parts can be ordered through the CTB intranet ordering system (SPOM) after sales Lighting. The manual lists each component with its item ordering number for quick reference.
| Front cover assembly (HAL) length | 90 mm |
|---|---|
| Front cover assembly (HID) length | 118 mm |
| Front glass assembly (HAL) length | 66 mm |
| Front glass assembly (HID) length | 91 mm |
| Lamp holder type GU5.3 | Assembly |
| Lamp holder type E27 | Assembly |
| Gear housing end cover | Part |
Spare parts can be ordered via the intranet ordering system (SPOM) of CTB / after sales Lighting.
The ordering number is 9965 000 11561.
The GU5.3 Lamp holder assembly is listed as part 3a.
The E27 Lamp holder assembly is part 3b with ordering number 9965 000 11557.
