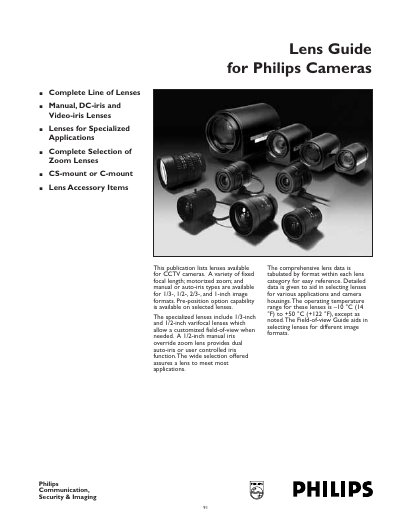

This publication lists lenses available for CCTV cameras. A variety of fixed focal length; motorized zoom; and manual or auto-iris types are available for 1/3-, 1/2-, 2/3-, and 1-inch image formats. Pre-position option capability is available on selected lenses. The specialized lenses include 1/3-inch and 1/2-inch varifocal lenses which allow a customized field-of-view when needed. A 1/2-inch manual iris override zoom lens provides dual auto-iris or user controlled iris function.The wide selection offered assures a lens to meet most applications. The comprehensive lens data is tabulated by format within each lens category for easy reference. Detailed data is given to aid in selecting lenses for various applications and camera housings.The operating temperature range for these lenses is –10 °C (14 °F) to +50 °C (+122 °F), except as noted.The Field-of-view Guide aids in selecting lenses for different image formats.
The guide provides a comprehensive list of lenses compatible with Philips CCTV cameras. It covers fixed‑focal, motorized‑zoom, manual‑iris and auto‑iris lenses for 1/3‑inch, 1/2‑inch, 2/3‑inch and 1‑inch image formats, and notes operating temperature limits of –10 °C to +50 °C.
Detailed tables give dimensions, focal lengths, mount types (CS‑mount or C‑mount), iris control options, and weight for each lens model. The document also includes a field‑of‑view guide, accessory items such as adapter rings and cable converters, and wiring details for DC‑iris and video‑iris connections.
| Operating temperature range | –10 °C to +50 °C |
|---|---|
| Mount type | CS‑mount or C‑mount |
| Supported image formats | 1/3‑inch, 1/2‑inch, 2/3‑inch, 1‑inch |
| Iris control options | Manual, DC‑iris, video‑iris |
The guide includes lenses for 1/3‑inch, 1/2‑inch, 2/3‑inch and 1‑inch image formats.
Lenses are rated for temperatures from –10 °C (14 °F) up to +50 °C (122 °F).
Both CS‑mount and C‑mount lenses are listed.
Auto‑iris requires 8‑12 VDC and a video input signal.
