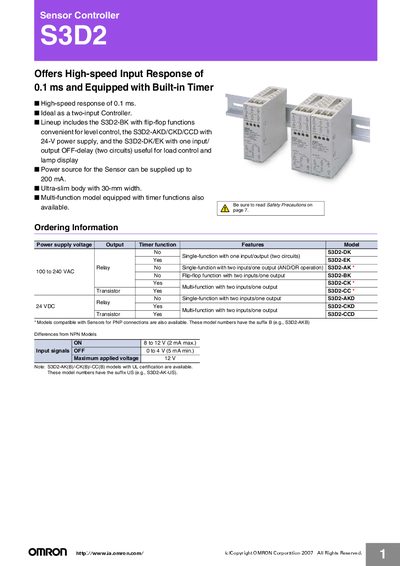

S3D2 Sensor Controller Offers High-speed Input Response of 0.1 ms and Equipped with Built-in Timer
The S3D2 is a high‑speed sensor controller offering a 0.1 ms input response and various input/output configurations, including relay and open‑collector outputs. It supports single‑function, multi‑function, and flip‑flop models with optional timer functions.
This manual covers ordering information, wiring diagrams, nomenclature, installation and mounting instructions, safety precautions, and detailed technical specifications to help users install, configure, and maintain the controller safely and effectively.
| Input response time | 0.1 ms |
|---|---|
| Power consumption | 15 VA max |
| Ambient temperature (operating) | -10 °C to +55 °C |
| Weight | Approx. 140 g |
| Body width | 30 mm |
| Output type | Relay SPST‑NO (NO, NC) |
| Sensor power source current | up to 200 mA |
The controller responds to input signals in 0.1 ms.
Ground the FG terminal with a resistance of 100 Ω max in noisy locations.
The controller can operate from –10 °C to +55 °C and be stored from –25 °C to +65 °C.
