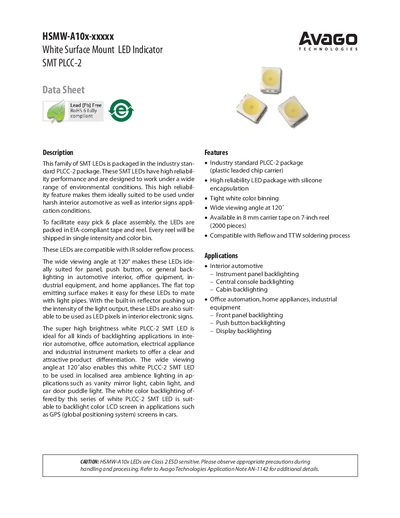

Avago HSMW-A10x-xxxxx White Surface Mount LED Indicator Datasheet
The HSMW-A10x-xxxxx family are white surface‑mount LEDs packaged in a standard PLCC‑2 package. They are designed for high reliability in harsh interior automotive, office, industrial and home‑appliance environments, and are suitable for backlighting, panel illumination, and LED pixel applications.
Key data include a 120° viewing angle, typical forward voltage of 3.4 V, power dissipation of 114 mW, and operating temperature range from –40 °C to +100 °C. The handbook also covers moisture‑sensitivity handling, recommended soldering profiles, and packaging dimensions for tape‑and‑reel delivery.
Avago HSMW-A10X-XXXXX specifications
| Power dissipation (mW) | 114 |
|---|---|
| Reverse voltage (V) | 5 |
| Maximum forward current (mA) | 30 typ / 90 peak |
| Operating temperature range (°C) | -40 to +100 |
| Junction temperature (°C) | 110 |
| Viewing angle (°) | 120 |
| Typical luminous intensity (mcd) | 450 – 1125 |
Source: Avago HSMW-A10x-xxxxx White Surface Mount LED Indicator Datasheet
All Avago HSMW-A10X-XXXXX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What moisture‑sensitivity level does the HSMW‑A10x‑xxxxx have?
It is qualified as Moisture Sensitive Level 2a per JEDEC J‑STD‑020.
From: Avago HSMW-A10x-xxxxx White Surface Mount LED Indicator Datasheet
What is the maximum operating temperature range?
The device can operate from –40 °C up to +100 °C.
From: Avago HSMW-A10x-xxxxx White Surface Mount LED Indicator Datasheet
What is the moisture sensitivity level of the HSMW‑A10x LEDs?
The LEDs are qualified as Moisture Sensitive Level 2a according to JEDEC J‑STD‑020.
From: AVAGO TECHNOLOGIES HSMW-A10x-xxxxx White Surface Mount LED Indicator SMT PLCC-2 Manual
