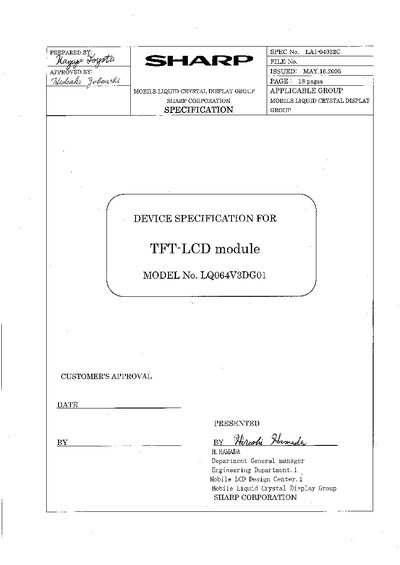

The LQ064V3DG01 is a 6.4‑inch diagonal color active‑matrix transmissive TFT‑LCD module that uses amorphous‑silicon TFT technology. It integrates a color panel, driver ICs, control circuits, power‑supply circuitry and a backlight unit (backlight inverter not built‑in). The module displays 640 × 480 dots with 262,144 colors via an 18‑bit RGB data interface.
The document provides mechanical dimensions, electrical characteristics, connector pin assignments, and backlight specifications, along with revision history and handling cautions for reliable integration into electronic equipment.
| Display size (Diagonal) | 16.32 cm (6.4") |
|---|---|
| Active display area | 130.56 mm × 97.92 mm |
| Pixel format | 640 × 480 dots |
| Pixel pitch | 0.204 mm × 0.204 mm |
| Contrast ratio | Min 150‑250, Typ 250‑350 |
| Supply voltage Vee | +3.0 V / +3.3 V / +3.6 V |
| Lamp voltage VL | 330 V – 410 V |
| Lamp life | ≈ 50,000 hours |
| Operating temperature (panel surface) | -10 °C – +70 °C |
The typical response time is 30 ms (max 60 ms) and the typical rise time is 8 ms (max 20 ms).
The module uses the Hirose DF9BA31P‑1V (32‑pin) connector for the panel signals.
The panel surface can operate up to +70 °C.
