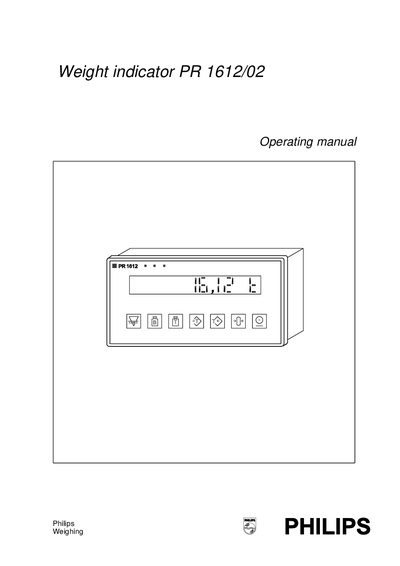

This manual describes the operation of the PR 1612/02 weight indicator.
The PR 1612/02 is a micro‑computer‑controlled weight indicator designed for industrial weighing applications such as platforms, weighbridges, tanks, and vessels. It can be used as a multi‑range indicator and communicates via the Philips EW protocol.
The manual is organized into sections covering safety, technical specifications, mounting and load‑cell connection, operation, setting and calibration, hardware options, and communication with other instruments. Appendices detail corner‑point adjustment and incremental calibration with make‑up weights, and language‑specific manuals are listed for English, German, and French.
Only trained and qualified personnel may operate, maintain, or repair the instrument.
The indicator communicates with other instruments or systems using the Philips EW protocol; an optional PR 1613/05 software adds support for other protocols.
