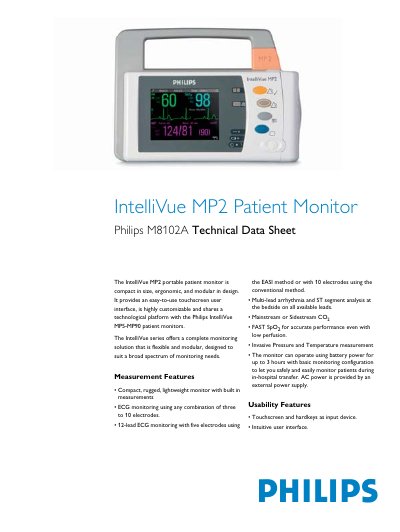

The Philips M8102A portable patient monitor is a compact, rugged, lightweight monitor with built-in measurements. It provides ECG monitoring using any combination of three to 10 electrodes.
The IntelliVue MP2 (model M8102A) is a compact, rugged, and lightweight portable patient monitor with a 3.5" QVGA touchscreen display. It supports ECG monitoring (including 12‑lead), SpO₂, invasive pressure and temperature measurements, and offers customizable user profiles and alarm limits for adult, pediatric, and neonatal care.
The monitor can operate on battery power for up to 3 hours and complies with medical safety and EMC standards. It includes optional wired or wireless networking, a range of mounting options, and service tools for configuration, upgrades, and troubleshooting.
| Display resolution | 320 x 240 (QVGA) |
|---|---|
| Weight | 1.5 kg (3.3 lb) |
| Dimensions (WxHxD) | 188 x 99 x 86 mm |
| Battery operating time | up to 3 hours |
| Power consumption | < 40 W average, < 65 W peak |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | -20 °C to 60 °C |
| Altitude range (operating) | -500 m to 3000 m |
| Maximum simultaneous measurement waves | 3 |
| ECG lead capability | 12‑lead ECG monitoring |
The monitor can operate using battery power for up to 3 hours.
It has a QVGA display with a resolution of 320 × 240 pixels.
