RM6R series ferrite core sets, with high magnetic permeability and low loss, are suitable for filter applications.

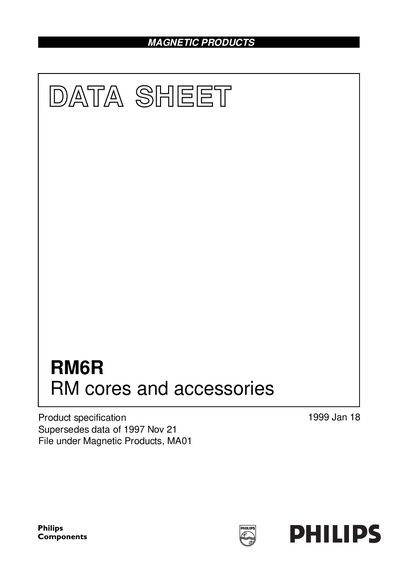

This data sheet describes the RM6R series of magnetic cores and accessories offered by Philips. It includes core set parameters, inductance adjuster details, coil former specifications, and mounting clip information, together with product status definitions and worldwide contact data.
The document is intended for designers and engineers selecting magnetic components for filter and inductance applications. It notes that the products are not approved for life‑support use and provides the latest final product specifications as of January 1999.
| Core factor (C1) | 0.810 |
|---|---|
| Effective volume (Ve) | 810 mm³ |
| Effective length (le) | 25.6 mm |
| Mass of set | 24.5 g |
| Clamping force (core sets) | 40 ± 20 N |
| Inductance adjuster head material | Polypropylene (PP) |
| Maximum operating temperature (inductance adjuster) | 125 °C |
| Coil former material | Phenolformaldehyde (PF) glass‑reinforced, flame‑retardant |
| Maximum operating temperature (coil former) | 180 °C |
| Clamping force (mounting clip) | 20 N |
The core sets have a clamping force of 40 ± 20 N.
The inductance adjuster can operate up to 125 °C.
No, the products are not designed for use in life‑support appliances or systems.
The coil former is made of phenolformaldehyde (PF) glass‑reinforced, flame‑retardant material.
