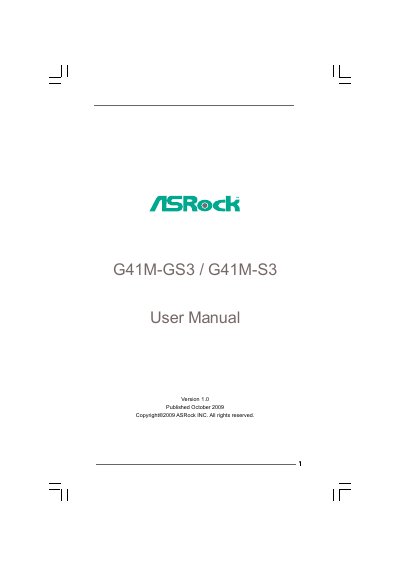

G41M-GS3 / G41M-S3 User Manual
This manual introduces the ASRock G41M-GS3 / G41M-S3 Micro ATX motherboard, its key features, and the steps required to install and configure the board. It includes safety notices, warranty information, and regulatory compliance details.
The document covers hardware installation, BIOS configuration, overclocking options, and the software support CD. Detailed specifications, connector layouts, and troubleshooting guidance are provided to help users set up Windows operating systems and optimize system performance. This manual is written in Chinese.
| Form Factor | Micro ATX, 9.6" x 7.6" (24.4 cm x 19.3 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2, Core2 Quad, Core2 Duo, Pentium Dual Core, Celeron Dual Core, Celeron |
| Memory Slots | 2 DDR3 DIMM slots, up to 8 GB |
| Maximum Memory Capacity | 8 GB |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Graphics | Intel Graphics Media Accelerator X4500 |
| Audio Codec | Realtek ALC662 (5.1‑channel HD Audio) |
| LAN (G41M‑GS3) | Realtek RTL8111DL, 10/100/1000 Mbps |
| LAN (G41M‑S3) | Realtek RTL8103EL/8102EL, 10/100 Mbps |
| SATA Connectors | 4 × SATAII 3.0 Gb/s (no RAID, no hot‑plug) |
| BIOS | 8 MB AMI BIOS |
It uses an LGA 775 socket for Intel® Core 2, Core 2 Quad, Core 2 Duo, Pentium Dual Core, and Celeron processors.
The board provides two DDR3 DIMM slots with a maximum supported memory of 8 GB.
The G41M‑GS3 model includes a Realtek RTL8111DL Gigabit LAN controller supporting 10/100/1000 Mbps.
Yes, it has four SATAII 3.0 Gb/s connectors for SATAII hard drives (without RAID or hot‑plug).
