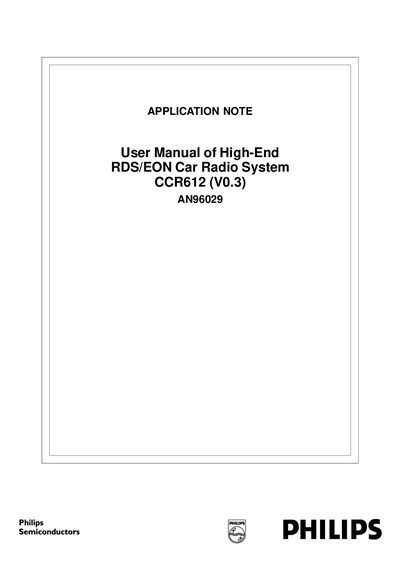

PHILIPS AN96029 Manual

About this manual

The CCR612 is a computer‑controlled car radio system based on a P83CE528 microcontroller. It provides AM/FM reception with RDS/RBDS+EON decoding, PLL tuning, IF control, stereo decoding, LCD display, cassette interface, external audio input, and optional CD‑changer support.

The manual covers hardware configuration, pinning, functional description, key functions, optional modules such as power amplifiers (TDA8561Q) and source selectors (HEF4052B/TDA1526), as well as detailed appendices for memory layout and circuit diagrams.

What's inside

• INTRODUCTION
• HARDWARE CONFIGURATION
• SHORT SPECIFICATION
• PINNING AND INTERFACING
• KEYFUNCTIONS
• FUNCTIONAL DESCRIPTION
• APPENDIX I NVM layout
• APPENDIX II Segment addresses

Specifications

Frequently asked questions

What microcontroller is used in the CCR612?

The CCR612 uses a P83CE528 microcontroller.

Which CD‑changer model can be connected to the CCR612?

It can be interfaced to an SCC600 CD‑changer.

What optional power amplifier chip is supported?

The optional power amplifier uses two TDA8561Q chips.

What source selector/audio controller chips are optional?

The optional source selector/audio controller uses HEF4052B and TDA1526.
