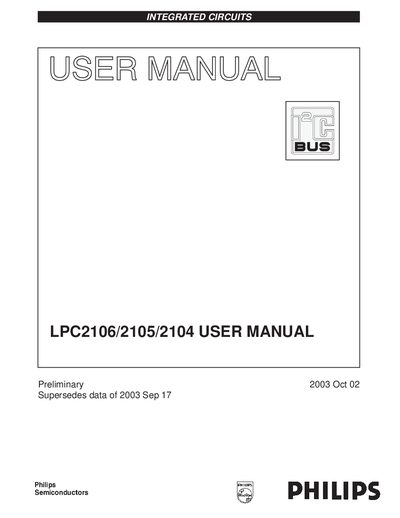

Philips LPC2106/2105/2104 User Manual

This is the user manual of LPC2106/2105/2104 ARM-based Microcontroller, which introduces the features and characteristics of the product and the application scenarios suitable for the product.

Brand: Philips
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 223
File format: PDF
File size: 2.3 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Models: LPC2104, LPC2105, LPC2106
MD5 checksum: 3046E06EDDAE88DDC4CAF56F729F759B
PDF: Philips LPC2106/2105/2104 User Manual PDF

About this manual

This manual introduces the LPC2106/2105/2104 ARM‑based microcontrollers, describing their key features, architectural overview, on‑chip flash and SRAM, and pin‑out information. It also covers system control blocks, clock sources, power management, and reset behavior.

Peripheral sections detail UART, I2C, SPI, timers, PWM, and the Real‑Time Clock, while later chapters explain flash programming, JTAG interface, EmbeddedICE debugging, RealMonitor support, and application notes for using the devices in embedded systems.

What's inside

Introduction
Features
Pin Description
Memory Architecture
Peripheral Interfaces
Real‑Time Clock
Watchdog Timer
Flash Programming
Debugging Options
Power Management

Specifications

Package	48‑pin LQFP (LQFP48)
Flash Memory	On‑Chip Flash Memory System
Static RAM	On‑Chip Static RAM
Real‑Time Clock	Integrated RTC module

Frequently asked questions

What package type does the LPC2106/2105/2104 use?

The device is supplied in a 48‑pin LQFP (LQFP48) package.

Does the LPC2106/2105/2104 include a Real‑Time Clock?

Yes, an integrated Real‑Time Clock module is provided.

How can the flash memory be programmed?

The manual describes a JTAG Flash Programming interface and a flash boot loader for programming the on‑chip flash.

What debugging features are available for these microcontrollers?

EmbeddedICE and RealMonitor debugging environments are supported, offering trace and on‑chip monitoring capabilities.
