Microchip PIC16F917/916/914/913 Datasheet

This document is a data sheet for the PIC16F917/916/914/913 series microcontrollers released by Microchip Technology Inc. in 2005. These microcontrollers are flash-based, 8-bit CMOS microcontrollers with LCD driver and nanoWatt technology. The document provides information regarding device applications and notes that updates may supersede this information. Microchip makes no representations or warranties of any kind regarding the information, including its condition, quality, performance, merchantability, or fitness for purpose. Microchip disclaims all liability arising from this information and its use. The use of Microchip's products as critical components in life support systems is not authorized without express written approval from Microchip. Additionally, the document lists some trademarks of Microchip.

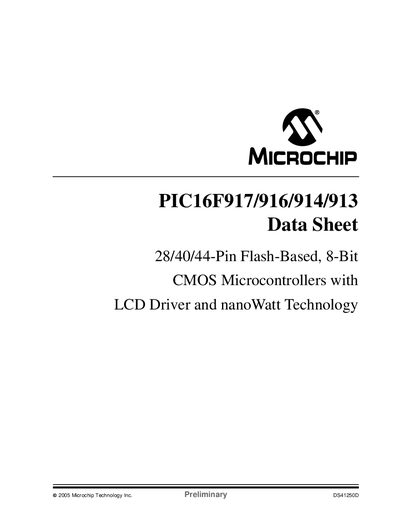

Microchip PIC16F917/916/914/913 Datasheet - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
274
File format
PDF
File size
4.6 MB
Published
03 May, 2012
Updated
28 September, 2023
MD5 checksum
11FAAA2B705FA24E2FBE24D809C35CBA

About this manual

The PIC16F917/916/914/913 family are 28/40/44‑pin flash‑based 8‑bit CMOS microcontrollers with an LCD driver and nanoWatt technology. They provide a high‑performance RISC CPU, a wide operating voltage range, and a variety of integrated peripherals such as timers, A/D converters, comparators, and communication modules.

The data sheet details memory organization, pin configurations, electrical specifications, and package information, along with application notes on migration from other PIC devices and programming support. It also includes contact information for worldwide sales and technical support.

What's inside

  • Memory Organization
  • I/O Ports
  • Clock Sources
  • Timer0 Module
  • Timer1 Module
  • Timer2 Module
  • Comparator Module
  • LCD Driver Module
  • A/D Converter Module
  • USART

Specifications

A/D converter resolution10‑bit
A/D converter channelsup to 8 channels
Operating voltage range2.0 V – 5.5 V
Standby current< 100 nA @ 2.0 V (typical)
Operating current (32 kHz)8.5 µA @ 2.0 V (typical)
Watchdog timer current1 µA @ 2.0 V (typical)
Flash write endurance100 000 cycles
EEPROM write endurance1 000 000 cycles
Data retention> 40 years
LCD pixel drive (28‑pin)up to 60 pixels
Timer116‑bit timer/counter with prescaler
Capture/Compare resolution12.5 ns (capture), 200 ns (compare)

Frequently asked questions

What is the operating voltage range of the PIC16F917/916/914/913?

The devices operate from 2.0 V to 5.5 V.

How low is the standby current for these microcontrollers?

Typical standby current is less than 100 nA at 2.0 V.

How many A/D channels are available and what is their resolution?

The A/D converter provides up to 8 channels with 10‑bit resolution.

What is the flash memory write endurance?

Flash memory can be written up to 100 000 times.
