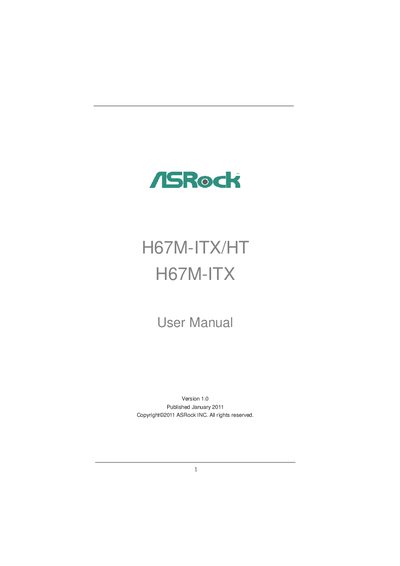

User Manual
This manual introduces the ASRock H67M-ITX/HT Mini‑ITX motherboard, describing its features, specifications, and the components included in the package. It guides users through hardware installation, BIOS configuration, and operating‑system setup.
Key sections cover detailed specifications, motherboard layout, I/O panel description, Wi‑Fi module and antenna installation, UEFI BIOS features, and software support via the included support CD. Troubleshooting tips and warranty information are also provided.
| Form Factor | Mini‑ITX 6.7" x 6.7" |
|---|---|
| CPU Support | 2nd‑Gen Intel® Core™ i7/i5/i3, LGA1155 |
| Chipset | Intel® H67 |
| Memory Slots | 2 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| PCI Express Slot | 1 × PCIe 2.0 x16 (blue) |
| LAN | Gigabit Ethernet (Realtek RTL8111E) |
| SATA3 Ports | 2 × 6 Gb/s connectors |
| USB 3.0 Ports | 2 × USB 3.0 (Etron EJ168A) |
The board provides two SATA3 6.0 Gb/s connectors for high‑speed storage devices.
It uses a 64 Mb AMI BIOS with UEFI GUI support.
Yes, it supports HDMI 1.4a with resolutions up to 1920×1200 @ 60 Hz.
Use the UEFI BIOS, set SATA mode to AHCI, boot in UEFI mode, and install a 64‑bit Windows version; the disk will be formatted with GPT.
