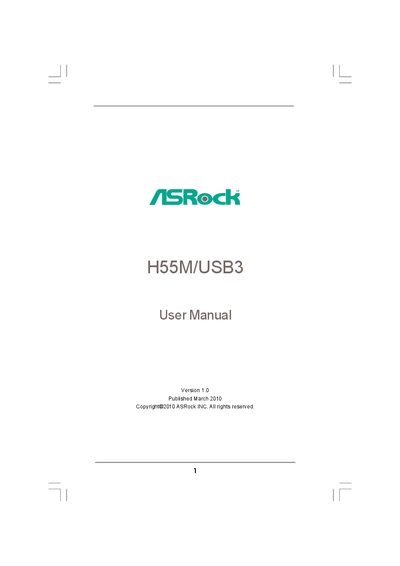

This is a user manual published by ASRock INC., which introduces the usage and specifications of the H55M/USB3 motherboard.
This manual introduces the ASRock H55M/USB3 motherboard, lists the package contents, and details the hardware specifications such as CPU support, memory slots, and expansion options. It guides users through step‑by‑step installation of the CPU, heatsink, memory modules, and other components, and explains the layout of onboard headers and connectors.
Later sections cover the BIOS Setup Utility, including navigation, configuration screens, and overclocking features, as well as software support with instructions for using the Support CD, installing drivers, and installing supported Windows operating systems.
| Form Factor | Micro ATX (9.6‑in x 8.8‑in) |
|---|---|
| CPU Socket | LGA1156 |
| Chipset | Intel H55 |
| Memory Slots | 2 x DDR3 DIMM |
| Maximum Memory Capacity | 8 GB |
| USB 3.0 Ports | 1 |
| SATA Ports | 5 × SATAII 3.0 Gb/s |
| LAN | Realtek RTL8111E Gigabit |
| Audio Codec | Realtek ALC892 |
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, and XP/XP 64‑bit.
The board provides one USB 3.0 port.
The motherboard can hold up to 8 GB of DDR3 memory.
Yes, it supports Untied Overclocking Technology and Intelligent Overclocking Technology.
