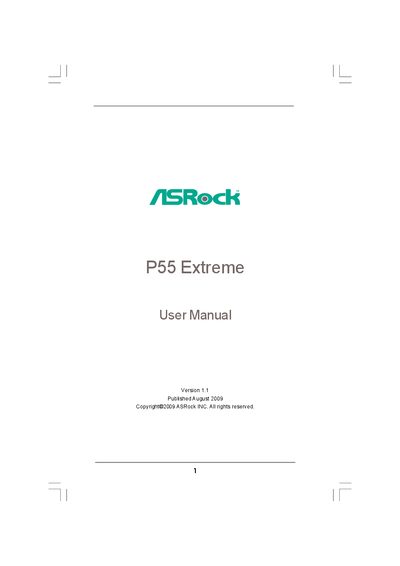

ASRock P55 Extreme User Manual
This manual explains the features and specifications of the ASRock P55 Extreme ATX motherboard and guides users through hardware installation, BIOS configuration, and software support. It includes safety notices, FCC compliance, and warranty information.
Key sections cover package contents, detailed specifications, CPU and memory installation, expansion slot usage, BIOS setup utility, and instructions for installing operating systems and using the support CD. The document also lists supported graphics configurations, audio and LAN details, and troubleshooting tips.
| Form Factor | ATX, 12.0‑in x 9.6‑in (30.5 cm x 24.4 cm) |
|---|---|
| CPU Support | Intel Core i7 and i5 processors, LGA1156 package |
| Chipset | Intel® P55 |
| Memory Slots | 4 × DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| LAN | Gigabit LAN (Realtek RTL8111DL) |
| SATA Connectors | 6 × SATAII 3.0 Gb/s ports (RAID, NCQ, AHCI, Hot Plug) |
| BIOS | 16 Mb AMI BIOS |
It supports Microsoft Windows XP, Windows XP 64‑bit, Windows Vista, Windows Vista 64‑bit, and Windows 7.
There are six SATAII 3.0 Gb/s connectors supporting RAID, NCQ, AHCI and hot‑plug functions.
It uses the Intel® P55 chipset.
