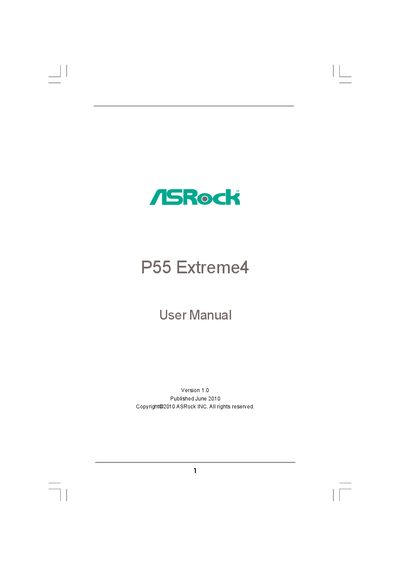

ASRock P55 Extreme4 Motherboard User Manual

P55 Extreme4 User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 70
File format: PDF
File size: 2.6 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: P55
MD5 checksum: 4225C2F9151899C420497CCFD8B564A2
PDF: ASRock P55 Extreme4 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock P55 Extreme4 ATX motherboard, lists the package contents, and details the hardware specifications such as CPU, memory, expansion slots, audio, LAN, USB and storage interfaces. It also explains safety notices, over‑clocking warnings, and regulatory compliance.

The guide walks users through step‑by‑step installation of the CPU, heatsink, memory modules, and expansion cards, then covers BIOS configuration, RAID setup, and operating‑system installation. The final sections describe the support CD utilities, driver installation, and where to obtain updates from the ASRock website.

What's inside

Introduction
Package Contents
Specifications
Installation
BIOS Setup Utility
Software Support
Overclocking
Safety Information

Specifications

Form Factor	ATX 12.0‑in x 9.6‑in (30.5 cm x 24.4 cm)
CPU Support	Intel Core i7/i5/i3 and Pentium G6950 (LGA1156)
Audio Codec	Realtek ALC892 7.1‑channel HD Audio
LAN	Realtek RTL8111E Gigabit Ethernet

Frequently asked questions

Which Windows operating systems are supported by the P55 Extreme4 motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP and XP 64‑bit.

Does the P55 Extreme4 support multi‑GPU technologies?

Yes, it supports both ATI CrossFireX (including Quad) and NVIDIA SLI (including Quad).
