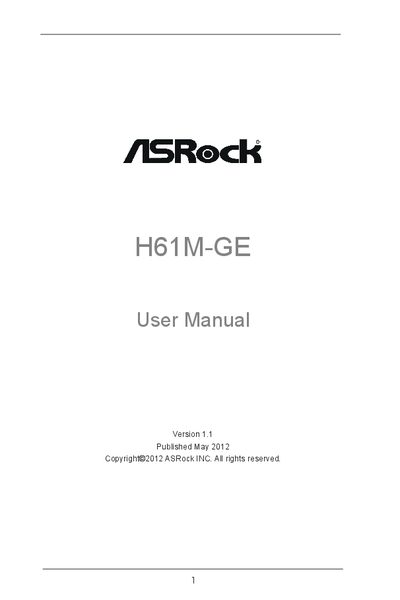

ASRock H61M-GE Motherboard User Manual

H61M-GE User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 58
File format: PDF
File size: 7.8 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: H61M-GE
MD5 checksum: 96AC1711A338A454936B6F3C413CFF06
PDF: ASRock H61M-GE Motherboard User Manual PDF

About this manual

This manual introduces the ASRock H61M-GE Micro ATX motherboard, its specifications, and the components included in the package. It guides users through hardware installation, jumper settings, and connector usage.

The document also covers BIOS/UEFI configuration, driver and utility installation from the support CD, and detailed steps for installing Windows operating systems, including large‑capacity (>2 TB) drives.

What's inside

Introduction
Specifications
Installation
UEFI Setup Utility
Software Support
BIOS Features
Hardware Monitoring
Support CD Information
Installing OS on Large HDD

Specifications

Form Factor	Micro ATX (9.6 in x 9.6 in)
CPU Socket	LGA1155
Chipset	Intel® H61
Memory Slots	4 x DDR3 DIMM
Maximum Memory	16 GB
SATA Connectors	4 x SATA2 3.0 Gb/s
LAN	Gigabit Ethernet (Atheros® AR8151)
Audio Codec	Realtek ALC887 (7.1 CH HD Audio)
BIOS	32 Mb AMI UEFI BIOS

Frequently asked questions

Which Windows operating systems are supported by the H61M‑GE motherboard?

The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.

What type of LAN controller is integrated?

A Gigabit Ethernet controller based on the Atheros® AR8151 chipset.

Download PDF (7.8 MB)
