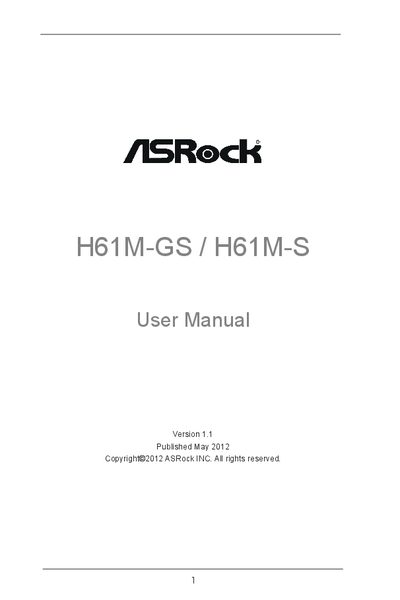

This is the manual of ASRock H61M-GS / H61M-S motherboard
This manual introduces the ASRock H61M-GS / H61M-S Micro‑ATX motherboard, lists the package contents, and details the hardware layout, I/O panel, and supported components. It guides users through CPU, memory, storage, and peripheral installation, as well as jumper and header configurations.
The document also covers the UEFI BIOS setup utility, including advanced features such as CPU configuration, storage options, and power management. The final sections describe software support, driver installation, and special procedures for installing operating systems on large hard drives.
| Form Factor | Micro ATX (9.6‑in x 7.8‑in) |
|---|---|
| CPU Socket | LGA1155, supports 2nd/3rd Gen Intel Core i7/i5/i3 |
| Chipset | Intel H61 |
| Audio Codec | Realtek ALC662, 5.1‑channel HD audio |
| LAN | H61M‑GS: Atheros AR8151 10/100/1000 Mbps; H61M‑S: Atheros AR8152 10/100 Mbps |
| SATA | 4 × SATA2 3.0 Gb/s ports, supports NCQ, AHCI, Hot Plug |
| BIOS | 32 Mb AMI UEFI BIOS with GUI support |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP and XP 64‑bit.
Enter the Security Screen in the UEFI Setup Utility, where you can set, change, or clear the supervisor and user passwords.
