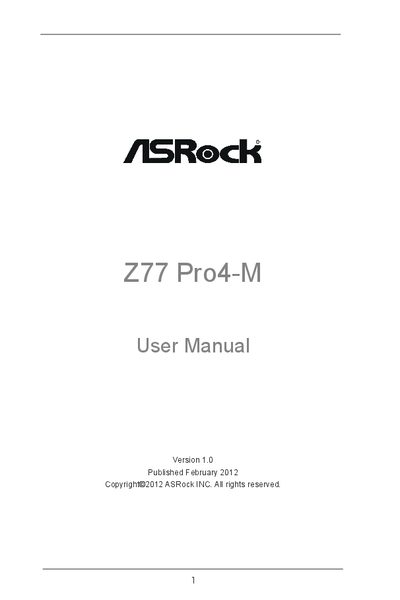

Z77 Pro4-M User Manual, Describe the features and characteristics of the product.
This manual introduces the ASRock Z77 Pro4-M motherboard, covering its package contents, key specifications, and layout. It also explains the warranty disclaimer and regulatory notices.
The guide walks you through hardware installation, BIOS configuration, and software support, including driver installation and operating‑system setup. Detailed sections describe expansion slots, SATA and USB interfaces, audio and LAN features, and troubleshooting steps.
| Form Factor | Micro ATX (9.6" x 9.6", 24.4 cm x 24.4 cm) |
|---|---|
| Chipset | Intel Z77 |
| CPU Socket | LGA1155, 2nd/3rd Generation Intel Core i7/i5/i3 |
| Memory Slots | 4 x DDR3 DIMM, up to 32 GB total |
| Maximum Memory Capacity | 32 GB |
| SATA3 Connectors (Intel) | 2 x 6.0 Gb/s |
| SATA3 Connectors (ASMedia) | 2 x 6.0 Gb/s |
| USB 3.0 Ports (Rear) | 2 x USB 3.0 |
| USB 3.0 Header (Front) | 1 x header supporting 2 ports |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC892 7.1‑channel HD Audio |
| HDMI Support | HDMI 1.4a, up to 1920×1200 @ 60 Hz |
It provides two rear USB 3.0 ports.
The motherboard supports up to 32 GB of DDR3 memory across four DIMM slots.
Yes, it supports HDMI 1.4a with a maximum resolution of 1920 × 1200 at 60 Hz.
