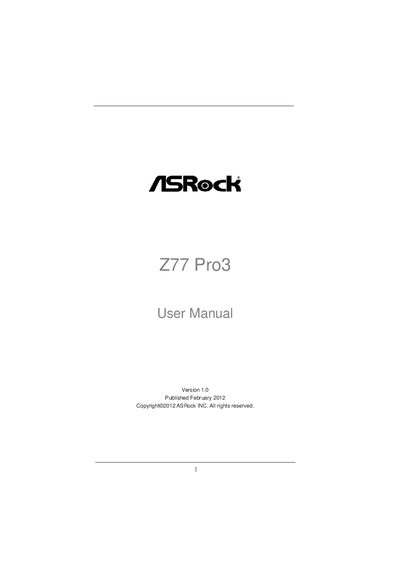

This document is the user manual for ASRock INC.'s Z77 Pro3 motherboard, providing specifications and information about the product.
This manual guides you through the hardware installation of the ASRock Z77 Pro3 motherboard, covering package contents, CPU and memory installation, expansion slots, and I/O panel connections. It also includes detailed instructions for BIOS configuration via the UEFI Setup Utility and driver installation for Windows operating systems.
Additional sections cover advanced features such as CrossFireX operation, dual‑monitor support, hot‑plug SATA functions, and troubleshooting steps like disabling Volume Shadow Copy or applying Windows hot‑fixes.
| Form Factor | ATX (12.0‑in x 7.6‑in) |
|---|---|
| CPU Socket | LGA1155 |
| Chipset | Intel® Z77 |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC892 (7.1 CH HD Audio) |
