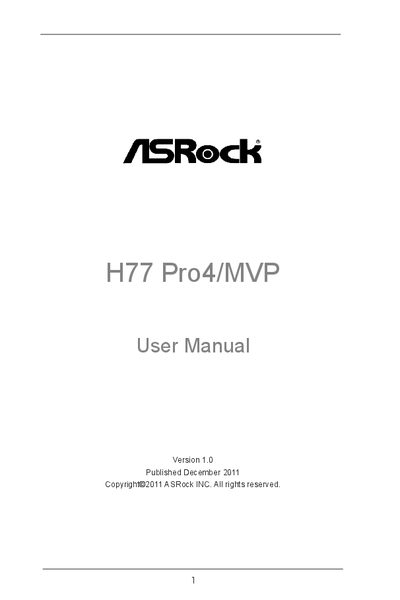

ASRock H77 Pro4/MVP User Manual

H77 Pro4/MVP User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 6.7 MB
Published: 02 May, 2012
Updated: 01 October, 2023
Model: H77
MD5 checksum: A3496A802838D5610E50AD9B6BA48D60
PDF: ASRock H77 Pro4/MVP User Manual PDF

About this manual

This manual introduces the ASRock H77 Pro4/MVP motherboard, lists the package contents, and details the specifications such as CPU support, memory capacity, and expansion slots. It also explains the layout of the board and the unique features offered by ASRock.

The guide walks users through hardware installation steps, BIOS (UEFI) configuration, and software support, including driver installation and operating‑system compatibility. Additional sections cover SATA and USB connections, audio/video outputs, and troubleshooting tips.

What's inside

Introduction
Package Contents
Specifications
Installation
UEFI Setup Utility
Software Support
Expansion Slots
Audio and Video Features
SATA and USB Ports
BIOS Features

Specifications

Form Factor	ATX (12.0" x 7.9")
CPU Support	3rd/2nd Generation Intel Core i7/i5/i3 (LGA1155)
Chipset	Intel H77
LAN Controller	Realtek RTL8111E Gigabit Ethernet
Audio Codec	Realtek ALC892, 7.1‑channel HD Audio

Frequently asked questions

How many rear USB 3.0 ports does the motherboard have?

The rear I/O panel includes two USB 3.0 ports.

What is the maximum system memory supported?

The board supports up to 32 GB of DDR3 memory.

Which LAN chip is used on this motherboard?

It uses a Realtek RTL8111E Gigabit Ethernet controller.
