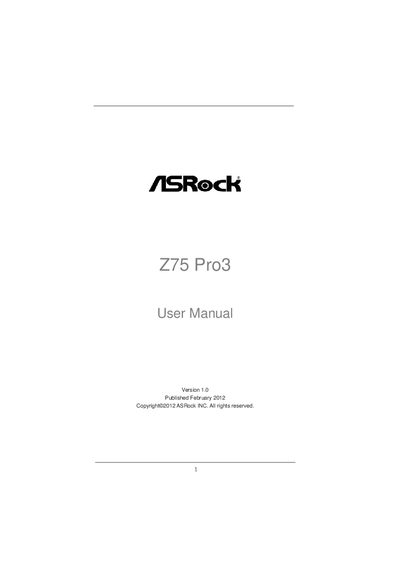

ASRock Z75 Pro3 Motherboard User Manual

Z75 Pro3 User Manual is a document that provides information about the features and characteristics of the Z75 Pro3 motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 70
File format: PDF
File size: 1.1 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: Z75
MD5 checksum: F7094148506A9F008C39A6664EE6E130
PDF: ASRock Z75 Pro3 Motherboard User Manual PDF

About this manual

This manual covers everything you need to get the ASRock Z75 Pro3 motherboard up and running, from package contents and hardware layout to detailed installation steps and BIOS configuration. It also includes information on supported CPUs, memory, storage, and peripheral connections.

Additional sections guide you through operating‑system installation, driver setup, and troubleshooting, with references to the support CD and ASRock website for the latest updates and utilities.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
I/O Panel
Installation
UEFI Setup Utility
Software Support
Troubleshooting

Specifications

Form Factor	ATX (12.0 in × 7.6 in)
CPU Support	2nd/3rd Gen Intel Core i7, i5, i3 (LGA1155)
USB Ports	4 × USB 2.0, 2 × USB 3.0

Frequently asked questions

What form factor does the ASRock Z75 Pro3 motherboard use?

It uses an ATX form factor measuring 12.0 in × 7.6 in.

Which CPUs are compatible with this motherboard?

The board supports 2nd‑ and 3rd‑generation Intel Core i7, i5, and i3 processors in an LGA1155 package.
