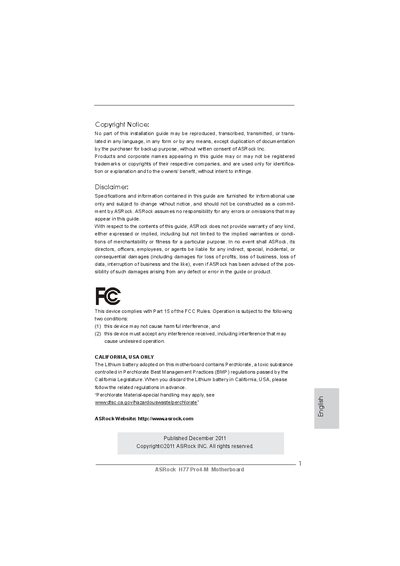

ASRock H77 Pro4-M Motherboard Installation Guide
This guide introduces the ASRock H77 Pro4-M motherboard, detailing its layout, I/O panel, and package contents. It also outlines the installation steps and highlights key features such as the Intel H77 chipset, DDR3 memory support, and multiple USB and SATA interfaces.
Technical specifications are listed, including CPU socket type, memory capacity, expansion slots, and networking options. The document also references BIOS features, unique utilities, and troubleshooting tips for Windows 7 installations.
| Form factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU socket | LGA1155 |
| Chipset | Intel® H77 |
| Memory slots | 4 x DDR3 DIMM |
| Maximum memory | 32 GB |
| SATA3 ports (Intel) | 2 x 6 Gb/s |
| SATA3 ports (ASMedia) | 2 x 6 Gb/s |
| USB 3.0 ports (rear) | 2 |
| PCIe slots | 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
It is a Micro ATX board measuring 9.6 in × 9.6 in.
The motherboard uses an LGA1155 socket.
There are four DDR3 DIMM slots.
It includes a Realtek RTL8111E Gigabit Ethernet controller.
