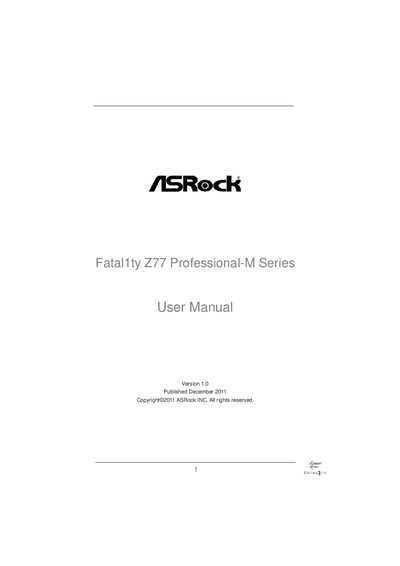

This manual is for Fatal1ty Z77 Professional-M Series motherboard, it mainly introduces the features and usage methods of the motherboard.
This manual provides a complete guide for installing, configuring, and troubleshooting the ASRock Fatal1ty Z77 Professional-M Series motherboard. It includes hardware installation steps, BIOS/UEFI setup, driver installation, and detailed specifications.
The document also covers advanced features such as SLI/CrossFire operation, dual‑monitor support, hot‑plug SATA functions, and power‑saving technologies, helping users get the most out of their system.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in) |
|---|---|
| Chipset | Intel® Z77 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory | 32 GB |
| PCI Express Slots | 2 × PCIe 3.0 x16, 1 × PCIe 2.0 x16 (x4), 1 × PCIe 2.0 x1 |
| Additional PCIe Slot | 1 × PCI Express 2.0 x16 (x4 mode) |
| Graphics Support | Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU |
It uses a Micro ATX form factor measuring 9.6 in × 9.6 in.
It can accommodate up to 32 GB of DDR3 memory across four DIMM slots.
There are two PCI Express 3.0 x16 slots, one PCI Express 2.0 x16 slot (operating at x4), and one PCI Express 2.0 x1 slot.
