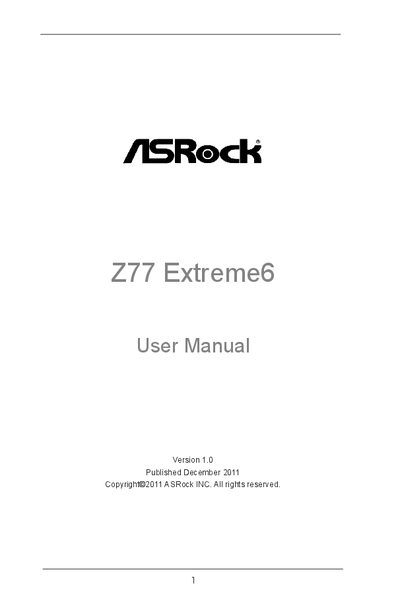

ASRock Z77 Extreme6 User Manual

Z77 Extreme6 User Manual, Introduces the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 87
File format: PDF
File size: 8.3 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: Z77
MD5 checksum: 8FE03EF160C9D6D6576418503537EE64
PDF: ASRock Z77 Extreme6 User Manual PDF

About this manual

The ASRock Z77 Extreme6 User Manual provides step‑by‑step instructions for installing the motherboard, configuring BIOS settings, and installing supported operating systems. It also includes safety notices, warranty information, and a detailed list of connectors and features.

The manual covers hardware installation (CPU, memory, expansion slots, SATA, USB 3.0, and power connections), BIOS/UEFI configuration, driver installation, and troubleshooting tips for Windows platforms.

What's inside

Introduction
Package Contents
Specifications
Installation
UEFI Setup Utility
Software Support
Operating System Installation
Troubleshooting

Specifications

Form Factor	ATX (12.0‑in x 9.6‑in)
CPU Socket	LGA1155
Chipset	Intel Z77
Memory Slots	4 DDR3 DIMM slots
Maximum Memory Capacity	32 GB

Frequently asked questions

What is the maximum supported system memory?

The motherboard supports up to 32 GB of DDR3 memory.

Download PDF (8.3 MB)
