Describe the features and characteristics of the Fatal1ty Z77 Professional Series products

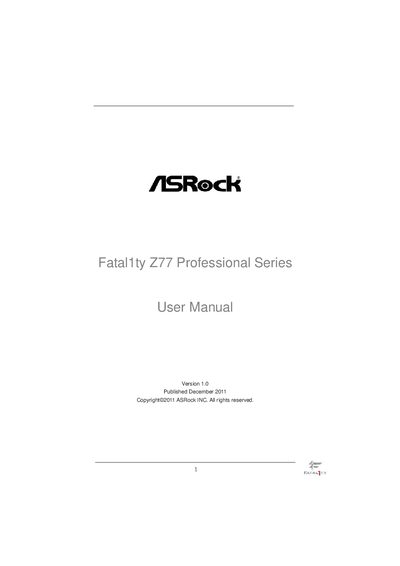

This manual introduces the ASRock Fatality Z77 Professional Series motherboard, covering package contents, specifications, and layout. It guides users through hardware installation steps such as CPU, memory, heatsink, and expansion cards, as well as SATA and USB connections.
Later sections detail the UEFI BIOS utility, including CPU, memory, and storage configuration, as well as operating‑system installation procedures for Windows 7, Vista, and XP (both RAID and non‑RAID). The manual also includes troubleshooting notes, warranty information, and contact details for technical support.
| Form Factor | ATX 12.0" x 9.6" (30.5 cm x 24.4 cm) |
|---|---|
| CPU Support | 3rd/2nd Generation Intel® Core i7/i5/i3 (LGA1155) |
| Chipset | Intel® Z77 |
| Power Phase Design | 16 + 8 Power Phases |
| SATA Ports | 6 SATA data ports (optional cables included) |
It follows the standard ATX form factor measuring 12.0 inches by 9.6 inches.
