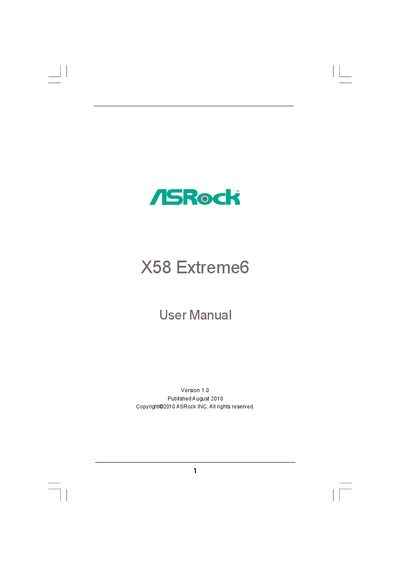

ASRock X58 Extreme6 Motherboard User Manual

X58 Extreme6 User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 76
File format: PDF
File size: 1.2 MB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: X58
MD5 checksum: FD499A43FB1ED0BE111C01FF76216624
PDF: ASRock X58 Extreme6 Motherboard User Manual PDF

About this manual

This manual covers the ASRock X58 Extreme6 ATX motherboard, detailing its specifications, package contents, and step‑by‑step hardware installation. It also explains the BIOS Setup Utility, Smart Switches, and unique ASRock features.

Key sections include CPU and memory installation, expansion slot usage, SATA and USB configurations, operating system installation guidance, and information about the Support CD with drivers and utilities.

What's inside

Package Contents
Specifications
Motherboard Layout
CPU Installation
Memory Modules Installation
Expansion Slots
BIOS Setup Utility
Software Support
Support CD Information

Specifications

Form Factor	ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm)
CPU Socket	Intel Socket 1366
Northbridge Chipset	Intel X58
Southbridge Chipset	Intel ICH10R
Memory Slots	6 DDR3 DIMM slots
Maximum Memory Capacity	24 GB
SATA3 Connectors	6 × SATA3 6.0 Gb/s connectors
Rear USB 3.0 Ports	4 ports
LAN Controller	Realtek RTL8111E Gigabit LAN

Frequently asked questions

What operating systems are supported by the X58 Extreme6 motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and XP/XP 64‑bit.

How many USB 3.0 ports are available on the rear panel?

There are four rear USB 3.0 ports.

How many DDR3 DIMM slots does the motherboard provide?

The board provides six DDR3 DIMM slots.

What is the form factor and size of the X58 Extreme6 motherboard?

It is an ATX board measuring 12.0 in × 9.6 in (30.5 cm × 24.4 cm).

Download PDF (1.2 MB)
