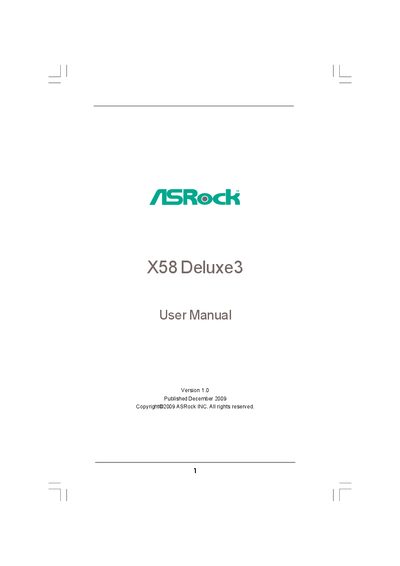

X58 Deluxe3 User Manual, Introduces the features and usage of this motherboard.
This manual introduces the ASRock X58 Deluxe3 motherboard, lists the package contents, and details the hardware specifications, including the ATX form factor, Intel X58 chipset, and support for Intel® Socket 1366 CPUs and Triple‑Channel DDR3 memory. It also explains the supported graphics configurations such as SLI™ and CrossFireX™.
The guide walks you through CPU, memory, and expansion slot installation, BIOS configuration, and the use of the Support CD for drivers and utilities. It includes operating‑system compatibility, power‑management features, and troubleshooting tips for overclocking and hardware health monitoring.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Intel Socket 1366 |
| Chipset | Northbridge Intel X58, Southbridge Intel ICH10R |
| Memory Slots | 6 x DDR3 DIMM |
| Maximum Memory | 24 GB |
| PCI Express Slots | 4 x PCIe 2.0 x16 |
| Audio Codec | Realtek ALC890 (110 dB dynamic range) |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| BIOS | 8 Mb AMI BIOS |
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, XP and XP 64‑bit.
The board provides six SATA II 3.0 Gb/s connectors.
It uses an 8 Mb AMI BIOS.
