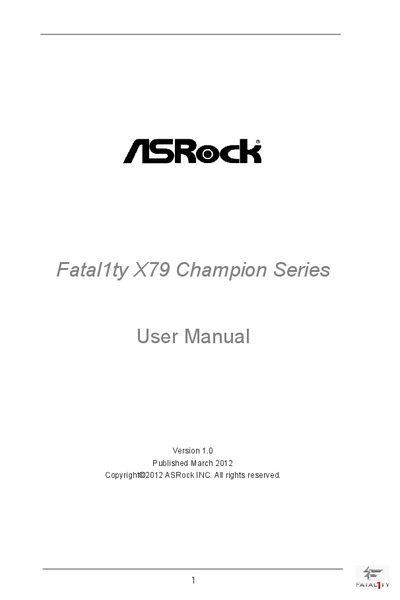

This is the user manual of ASRock Fatal1ty X79 Champion Series motherboard
This manual provides a complete guide to the Fatal1ty X79 Champion Series motherboard, including an overview of its ATX form factor, premium components, and supported technologies. It details package contents, hardware layout, and key specifications such as CPU support, memory capacity, expansion slots, and I/O features.
The document walks users through step‑by‑step installation procedures, UEFI BIOS configuration, and software utilities available on the support CD. It also includes troubleshooting tips for operating system installation on large drives and guidance on advanced features like overclocking, RAID, and power management.
| Form Factor | ATX (12.0‑in x 10.5‑in) |
|---|---|
| CPU Socket | LGA 2011 (Intel Core i7 family) |
| PCI Express x16 Slots | 5 slots (PCIe 3.0 x16) |
| USB 3.0 Ports | 8 rear USB 3.0 ports |
It uses the standard ATX form factor measuring 12.0 in × 10.5 in.
The board supports Intel® Core i7 processors for the LGA 2011 socket.
The motherboard provides five PCI Express 3.0 × 16 slots.
