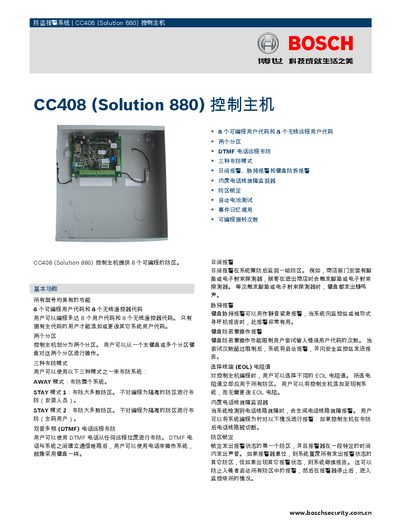

The CC408 (Solution 880) control panel offers 8 programmable zones. Basic features include 8 programmable user codes and 8 wireless remote user codes, two partitions, three arming modes, dual-tone multi-frequency (DTMF) telephone remote arming, day alarms, hold-up alarms, keyboard tamper alarms, select end-of-line (EOL) resistance, built-in telephone line fault monitor, zone locking, automatic battery test, event memory recall, and programmable ring time.
The CC408 (Solution 880) control master offers two partitions, eight programmable user codes, and three arming modes (AWAY, STAY for installers, STAY for master‑code users). It supports DTMF remote arming, built‑in telephone line fault monitoring, automatic battery testing, event memory recall, and programmable ringing and call‑transfer functions.
Technical specifications include environmental limits, power requirements, dimensions, and weight. The manual also lists compatible accessories, ordering information, and certification details for European CE and Chinese CCC approvals. This manual is written in Chinese.
| Relative humidity | 10% to 95% (no condensation) |
|---|---|
| Operating temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Standby current consumption | 65 mA |
| Alarm current consumption | 115 mA |
| Keypad current consumption | 105 mA |
| Main power | 240 VAC, 18 VAC (1.3 A) |
| Backup power | 12 VDC, 6 Ah sealed lead‑acid battery |
| Dimensions | 30.6 cm × 26.2 cm × 8.4 cm (12" × 10.3" × 3.3") |
| Weight | 2.5 kg (5.5 lb) |
It supports up to eight programmable user codes and eight wireless remote codes.
The system provides three arming modes: AWAY, STAY (for installation personnel), and STAY (for master‑code users).
The system performs a battery test each time it is armed and automatically every four hours.
The user can select different EOL resistor values, which are applied immediately to all zones.
