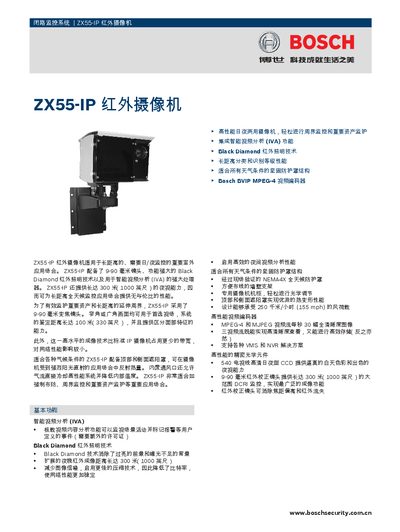

The ZX55-IP infrared camera is a high-performance, all-weather network camera that is ideal for critical outdoor applications that require day/night surveillance. The camera features a 9-90 mm varifocal lens, powerful Black Diamond infrared illumination technology, and a powerful processor for intelligent video analysis (IVA), and offers up to 300 m (1000 ft) of night vision, making it an unbeatable performer for long-range, full-time surveillance applications.
This manual describes the features of the Bosch ZX55‑IP infrared camera, including its 9‑90 mm motorized zoom lens, Black Diamond infrared illumination, and built‑in intelligent video analysis (IVA). It details the camera’s ability to deliver up to 300 m night‑vision range and its robust NEMA 4X enclosure for all‑weather outdoor use.
Installation and configuration instructions cover mounting options, power requirements (12‑24 VDC/VAC), Ethernet connectivity, and video output settings. Technical specifications such as sensor type, resolution, power consumption, and environmental limits are listed for quick reference. This manual is written in Chinese.
| Sensor | 1/3 inch day/night CCD |
|---|---|
| Effective Pixels (NTSC) | 768 × 494 |
| Effective Pixels (PAL) | 752 × 582 |
| Lens | 9‑90 mm infrared‑corrected motorized zoom |
| Night‑vision range | 300 m (1000 ft) |
| Power supply | 12‑24 VDC or VAC |
| Maximum power consumption | 58 W |
| Operating temperature | -50 °C to +50 °C |
| Dimensions (H × W × D) | 296 × 236 × 377 mm |
| Weight | 8.6 kg |
The camera can detect objects up to 300 meters (1000 feet) in complete darkness.
It operates on a supply of 12 V to 24 V DC or AC.
The camera uses a 1/3‑inch day/night CCD sensor.
